High Efficiency DC Inverter Heat Pump Control Board | 1.5kW 2kW 3.5kW Energy-Saving PCBA with Digital Thermostat & Sensor
Price:
US$150.00 - 200.00
MOQ:
1
Delivery Time:
5 weeks
Product Description
Basic Info.
Layers
Double-Layer
Base Material
FR-4
Certification
RoHS, CCC, ISO
Customized
Customized
Condition
New
Rated Power Input
3kw/4kw/5kw/6kw/7kw/8kw/10kw/12kw/15kw/18kw/25kw
Rated Voltage
Single Phase AC220V, Three Phase AC380V
Heat-Dissipating Method
Air Cooling, Liquid Cooling
Operating Power Frequency
50/60 Hz
Type of Compressor
BLDC/Pmsm
Communicated Method
RS485
Refrigerant
R410;R32;R290
Function
Cooling, Heating, Hot Water, Solar Power
Remote Control
WiFi, APP
Interaction
Touch Screen, Touch Button
Transport Package
Protect Product with Polyfoam and Multi Layer PA
Specification
length 288mm; width 154mm; height 160mm
Trademark
Origin
Guangdong, China
HS Code
8537101190
Production Capacity
300000 Pieces/Year
Packaging & Delivery
Package Size
435.00cm * 390.00cm * 320.00cm
Package Gross Weight
10.000kg
Product Description

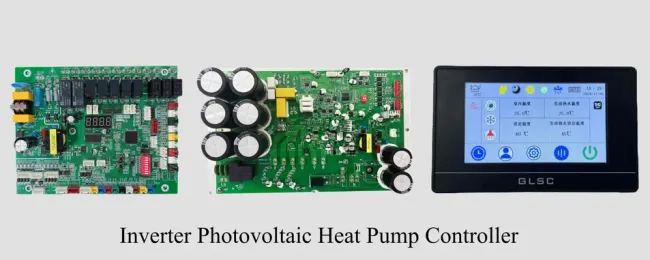

Energy-Saving 1.5kw 2kw 3.5kw Single Phase DC Inverter Integrated Heat Pump PCBA with Digital Thermostat and Sensor
Product Description

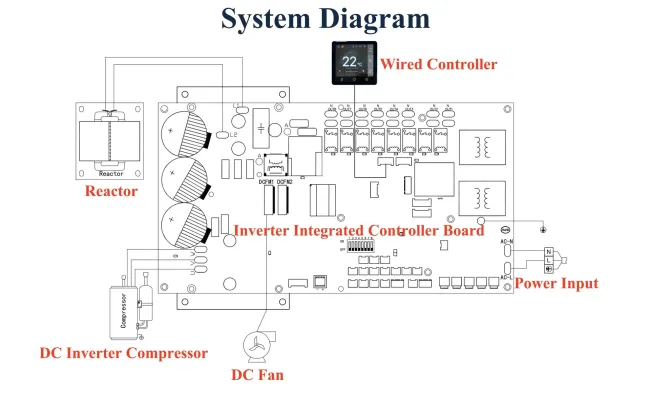

Heat Pump Main Control & DC Inverter Compressor Driver Integrated Board Complete Solution
Heat pump main control and DC inverter compressor driver integrated board complete solution is designed for heat pump system control and dc inverter compressor drive, and wired thermostat also can be controlled by WiFi Tuya APP.

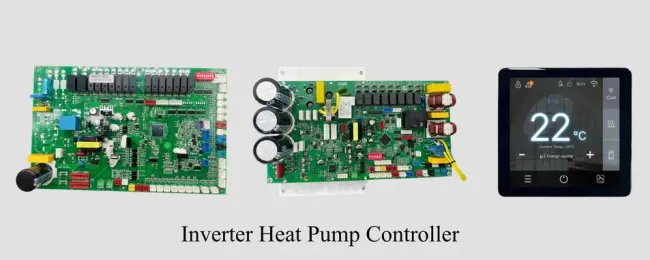

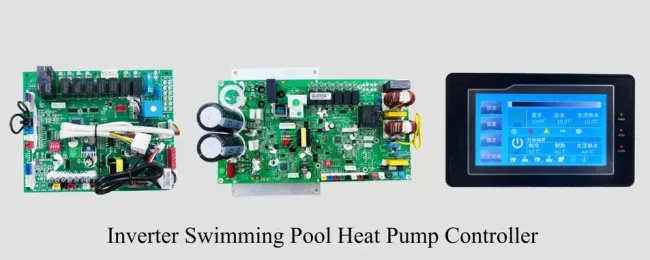

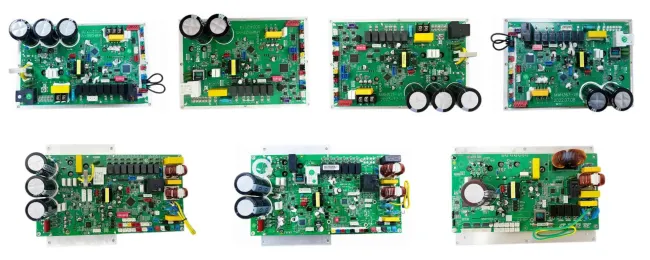

Focusing on DC inverter scenarios, we has developed a comprehensive product line to provide integrated solutions for you.
Our solutions are capable of providing customized algorithms based on your application scenarios and compressor drive parameters, as well as offering full-process technical support. khas adhered to the philosophy of innovation-driven and technology-led development, striving to become a global leader in efficient, energy-saving, and environmentally friendly inverter technology solutions. With twenty years of specialized experience, Kingsum has accumulated strong capabilities in the field of inverter technology, making a high-tech modern enterprise that integrates research and development, production, and sales.
Specification
1. Inverter Heat Pump Integrated Board: Reveive signal from wire thermostat, WIFI and sensors, to control the whole heat pump system and to drive inverter compressor for the heat pump system
|
Product Name
|
Single Phase 1.5kw/2kw/3.5kw Integrated PCBA for Heat Pump system control and DC Inverter Compressor Drive
|
Power Factor
|
0.99
|
|
Feature Description
|
PFC integrated
|
Operating Temperature Range
|
-30~60°C
|
|
Usage Scenarios
|
solar heat pump/heat pump/pool heat pump/dehumidifier/dryer/floor heating/water heater/ water cooler
|
Storage Temperature Range
|
-30~80°C
|
|
Rated Voltage
|
Single-Phase AC220V
|
Operating Humidity Range
|
10%~95%(No frosting and condensation)
|
|
Operating Voltage Range
|
AC175V-AC265V
|
Applicable Altitude
|
2000m
|
|
Operating Power Frequency
|
50/60Hz
|
Dimension(without radiator fins)
|
288*154*160 mm
|
|
Rated Power Input
|
1.5kw/2kw/3.5kw
|
On-off Input
|
8 channel
|
|
Heat-dissipating Method
|
Air cooling/Liquid cooling
|
Analog input
|
14 channel
|
|
Compressor Type
|
BLDC/PMSM Compressor
|
Relay output
|
9 channel
|
|
Range of Output Mechanical Frequency
|
20Hz-120Hz
|
DC blowers output
|
2 channel
|
|
Output Efficiency
|
0.93-0.95
|
Expansion valve output
|
2 channel
|
|
Communication Mode
|
RS485
|
Variable-speed pump
|
1
|
|
Refrigerant Type
|
R410;R32;R290
|
|
|
2. Wire Thermostat: user interface to interact with the heat pump
|
Avaliable Product Type
|
86 Type IPS Touch Screen Wire Thermostat
86 Type LCD Touch Button Wire Thermostat 4.3 Inch TFT Touch Screen Wire Thermostat 7 Inch TFT Touch Screen Wire Thermostat |
|
Input Voltage
|
DC 12V±5%
|
|
Rated Power
|
<6W
|
|
Communication Protocal
|
Modbus-RS485
|
|
Remote Control
|
App Controlled
|
|
Dimension
|
86x86x20mm,
170*105*33mm, 226*163*38mm |
|
Display Method
|
IPS Screen, LCD Screen, TFT Screen
|
|
Resolution
|
480*480,480*272,480*800
|
|
Interaction
|
Single Point Touch Screen, Touch Button
|
|
Operating Temperature Range
|
-20~70°C
|
|
Storage Temperature Range
|
-30~70°C
|
|
Operating Humidity Range
|
0%-90% RH
|
|
Applicable Altitude
|
2000M
|
|
Communication Interface
|
RS485*1
|
|
Optional Function
|
WIFI, 4G
|
|
Certificates
|
CE,RoHS,ISO
|
|
UI
|
UI Provided by Customer
|

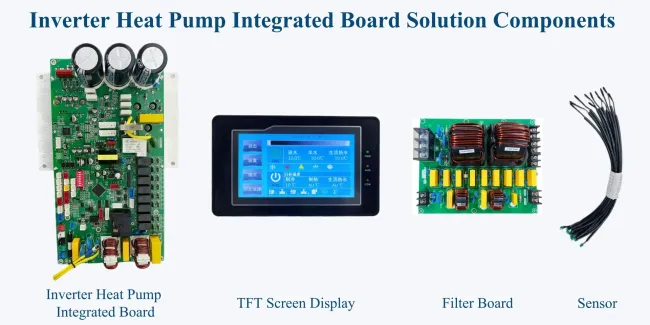

3. Accessory Products: sensors, reactor, PFC inductor, filter board: we use the world-famous brand OHIZUMI sensors for high quality garantee
Usage Scenarios:
solar heat pump;water heater;water cooler;floor heating;heat pump dehumidifier;heat pump dryer;air to water heat pump;swimming pool heat pump;air source heat pump;ground source heat pump;geothermal heat pump
