2 Layers 1oz Copper Thickness Green Soldmask FR4 PCB Prototype
Detail Specifications for this FR4 PCB prototype electronic printed circuit board fabrication
| Layers | 2 |
| Material | FR-4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1/1 oz |
| Surface Treatment | ENIG 1u" |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
FR-4 is a code name for a flame-resistant material grade. It means a material specification that the resin material must be self-extinguishing after being burned. It is not a material name, but a material grade, so the current general circuit There are many types of FR-4 grades used in the panels, but most are composites made of so-called four-function epoxy plus fillers and fiberglass.
KAZ provide the service as below:
- PCB manufacturing
- components sourcing
- PCB Assembly: SMT/DIP services
In order to get a full quotation of the PCB/PCBA, pls provide below information:
- Gerber, with detail specification of the PCB
- BOM List with excel fomart
- Photoes of the PCBA (if you have done this project before, if not, just ignore this)

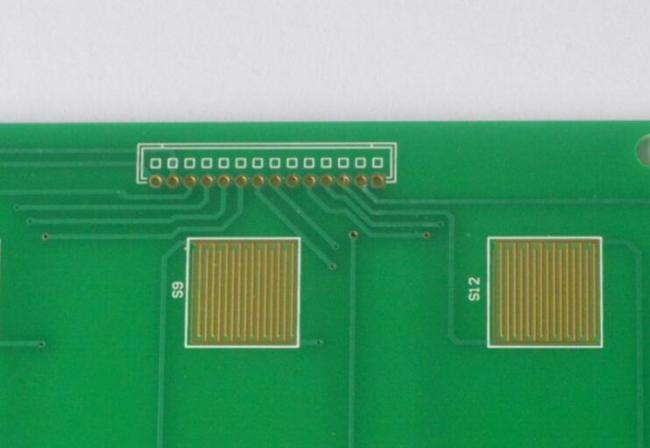

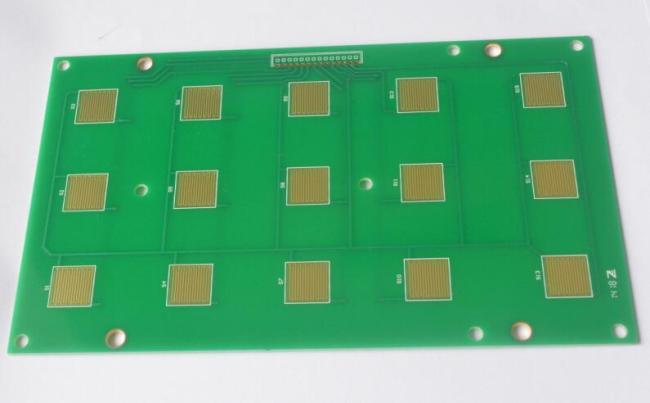

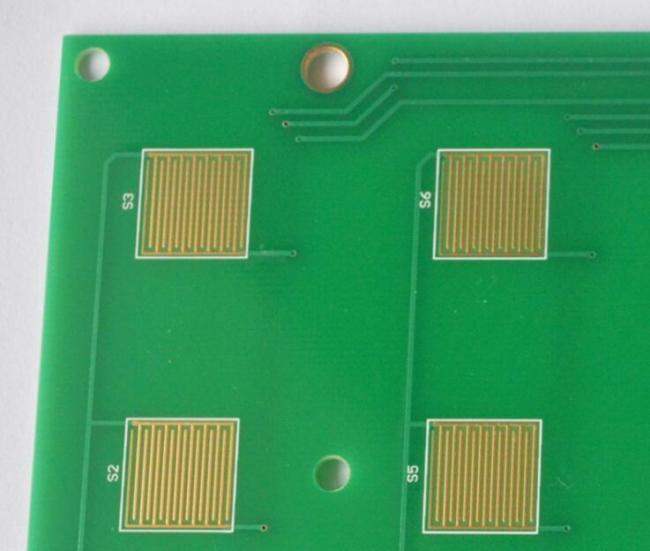

More detail photoes for this FR4 PCB prototype electronic printed circuit board fabrication
