Single pipe single interface hydraulic top supporter

GYCD-145/900

Features:

1. No tail tube, single tube and single interface design.

2. The interface is a flat-head shaft single interface design, which is easy to clean, can be operated under pressure, and is in place with one press.

3. Plastic non-slip switch control, no sticking or sticking, making the operation more precise.

4. There is an integrated LED lighting system at the top of the ejector pole, which can provide lasting lighting for rescuers.

5. The two-way hydraulic lock is used inside, and the tool has the function of self-locking and pressure keeping after the pressure is released.

6. Built-in laser positioning device at the end of the ejector rod. It can be accurately positioned when supporting the roof to ensure accuracy in use.

7. The end of the ejector rod and the base of the ejector rod can rotate 360°. The non-slip claw structure makes the ejector rod safe and stable on inclined or smooth surfaces.

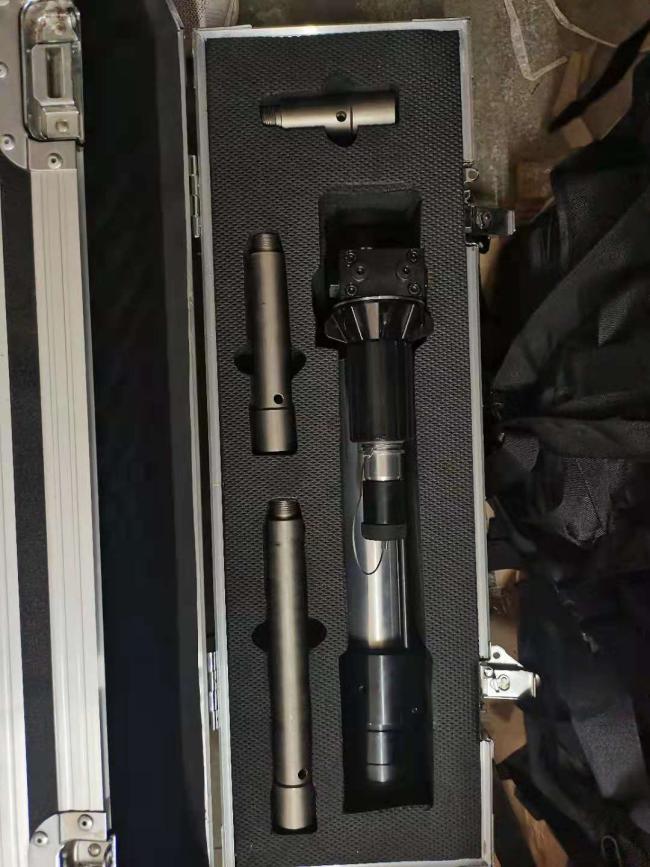

8. Tool packaging is opened with high-strength foam. Lightweight and durable. Anti-stepping pressure, anti-rain, anti-corrosion.

Parameter:

Rated working pressure ≥72MPa

Rated supporting force ≥145KN

Operating range 550-900mm

Top stroke 350mm

Weight ≤12kg

Dimensions (length*width*height) 550*280*100mm
