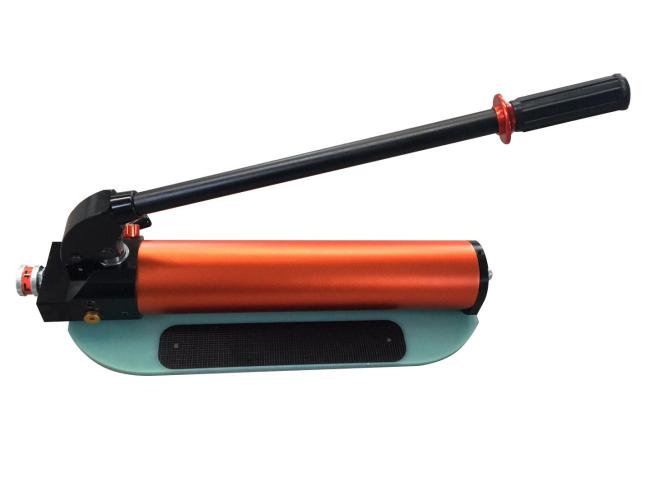

72Mpa flat head shaft single interface hydraulic tool series of supporting manual power source. No fuel or electricity, manual operation can generate hydraulic power, perfect internal high and low pressure free conversion, improve rescue efficiency.

1, the interface for the flat head axis single interface design, easy to clean, can be operated with pressure, one press in place.

2. The end of the manual pump is equipped with a hydraulic oil window, which can observe the amount of oil in the pump body at all times.

3. The manual pump is equipped with a limit pressure handle to prevent bumping against the pump body.

Parameters:

1. Rated working pressure: ≥72MPa

2, hydraulic oil tank volume: ≥2.0L

3, low pressure output pressure: 5~10MPa

4, high pressure flow: ≥1.5ml/ time

5, low pressure flow: ≥12ml/ time

6, the maximum handle force: ≤350N

7, weight: ≤8kg

8. Overall dimension (length * width * height) : 720×150×145mm
