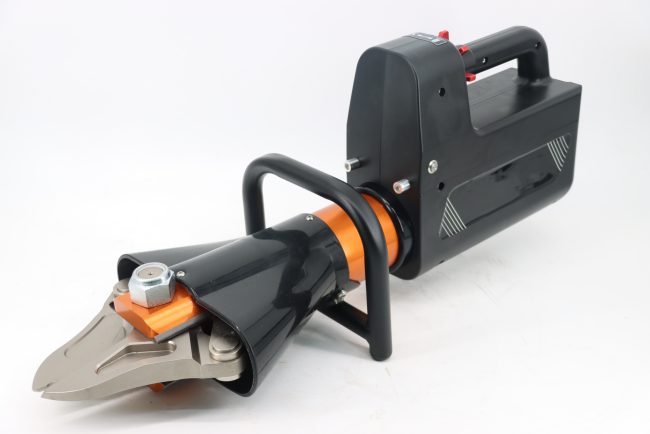

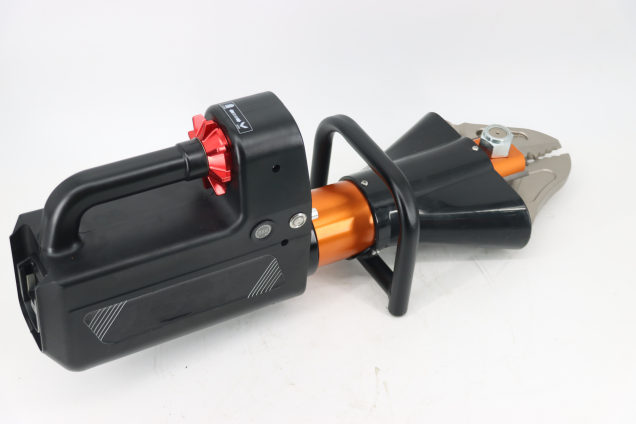

Traffic Accidents Rescue Tools Firefighter Electric Hydraulic Cutting Shear DYPC-72
| 1.Overview |
| The main parts of the electric shear are made of aviation aluminum alloy, which is strong and light; high-capacity batteries are used, with long battery life; multiple circuit and mechanical protection measures ensure the safety of the tool and the operator; the power switch is one-touch, and it is ready to use; the motor, operating handle, eccentric shaft, and oil cylinder are in the same axis and are in-line designed to save space. |
| 2.Application |
| Traffic accidents, disaster accidents, rescue in urban areas, especially suitable for high-altitude rescue and field operations. |
| 3.Feature |
| The blade is made of high-strength material to prevent breakage and is more durable; the ergonomic blade design uses the pullback effect during shearing to naturally push the sheared material to the center where the shear force is the largest, allowing high-load rescue operations; it can disassemble the entire vehicle and cut off vehicle components, metal structure pipes, special-shaped steel and steel plates |
| 4.Specification |
|
1. Rated working pressure: 72MPa 2. Opening distance 190mm; 3. Maximum shear force 650KN; 4. Shearing capacity: Q235A round steel 36mm, Q235A steel plate 18mm; 5. Equipped with 2 batteries and 1 charger; Battery capacity: 6Ah; 6. Weight 18.9kg (including battery and hydraulic oil); |
| 5.Product Configuration |
|
1. Electric hydraulic shear 1 piece 2. Batteries 2 pieces 3. Charger 1 set 4. Manual 1 copy |
| 1.Overview |
| The main parts of the electric shear are made of aviation aluminum alloy, which is strong and light; high-capacity batteries are used, with long battery life; multiple circuit and mechanical protection measures ensure the safety of the tool and the operator; the power switch is one-touch, and it is ready to use; the motor, operating handle, eccentric shaft, and oil cylinder are in the same axis and are in-line designed to save space. |
| 2.Application |
| Traffic accidents, disaster accidents, rescue in urban areas, especially suitable for high-altitude rescue and field operations. |
| 3.Feature |
| The blade is made of high-strength material to prevent breakage and is more durable; the ergonomic blade design uses the pullback effect during shearing to naturally push the sheared material to the center where the shear force is the largest, allowing high-load rescue operations; it can disassemble the entire vehicle and cut off vehicle components, metal structure pipes, special-shaped steel and steel plates |
| 4.Specification |
|
1. Rated working pressure: 72MPa 2. Opening distance 190mm; 3. Maximum shear force 650KN; 4. Shearing capacity: Q235A round steel 36mm, Q235A steel plate 18mm; 5. Equipped with 2 batteries and 1 charger; Battery capacity: 6Ah; 6. Weight 18.9kg (including battery and hydraulic oil); |
| 5.Product Configuration |
|
1. Electric hydraulic shear 1 piece 2. Batteries 2 pieces 3. Charger 1 set 4. Manual 1 copy |
