Stainless Steel Water Spray Fire Extinguisher , Advanced Fire Department Equipment
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
Negotiable
Brand:
TOPSKY
Product Description

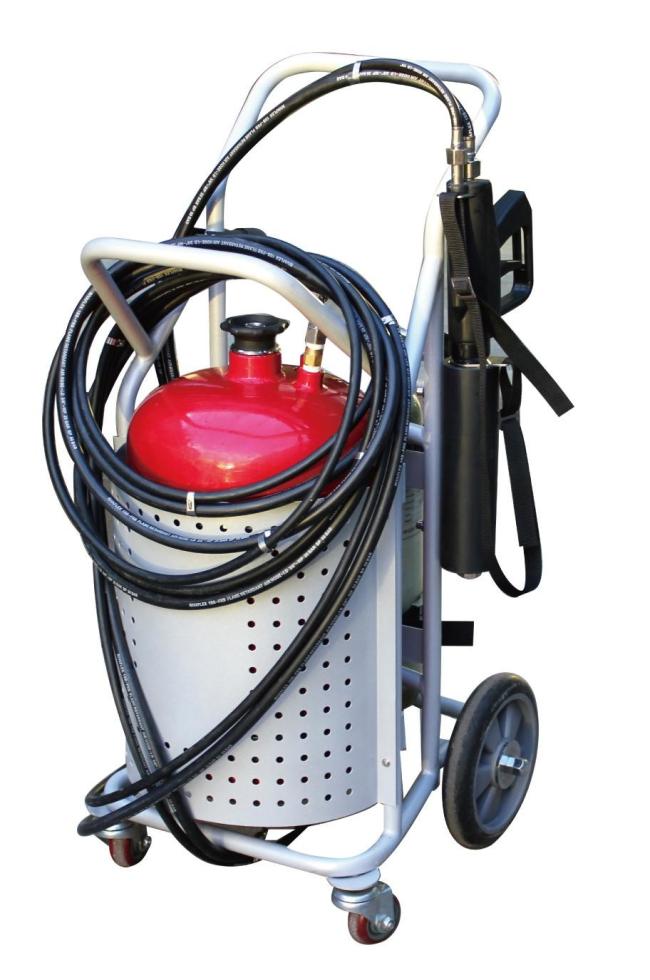

Fire Fighting Equipment/ water mist fire extinguisher (trolley type)
Applications:
It has applied advanced aerodynamics technology from flow engineering applications involving liquid/gas mixtures to create QXW series water mist systems.
Trolley
The combination of the highly sophisticated Guns and a trolley supply system make the QXW series trolley the safest and ideal choice for handling medium size fires. The QXW series trolleys are ideal fire fighting solutions for coal mine , warehouses, workshops and construction sites where flameable materials are stored or processed.
Technical specification:
| Extinguishing agent tank | |
| Filling capacity | 35 litres |
| Material | Stainless steel |
| Working pressure | |
| Pressure | 6.0 bar |
| Propellant gas bottle | |
| Medium | Compressed air |
| Pressure cylinder | Filling pressure: 300bar |
| Volume: 6.8 litres | |
| Technical parameters | |
| Operating time | Appr. 25 sec. |
| Flow rate | 24 litres/min |
| Operating temperature | Tmin +5°C; Tmax +60°C |
| Carrying device | Ergonomically shaped |
| Extinguishing gun | |
| Changeover time | Appr. 3 sec. (jet to spray mode) |
| Lancing distance | Appr. 10 m jet mode |
| Ratings (extinguishing performance) | |
| A Fire Class | 55 A (as per EN3) |
| B Fire Class | 233 B (as per EN3) |
| IIB (EN 1866) (e.g.: with exting. agent Moussel C) | |
| Dimensions | |
| Weight empty(with the gas bottle and valve ) | 74.5 kg |
| Dimensions (LxWxH) | Appr. 490x 527x 982mm |
