200W 24VDC Air conditioner are widely used in outdoor battery cabinet, indoor battery cabinet and other kiosk which has the temperature and control request
Price:
Negotiation
MOQ:
1EA
Delivery Time:
3 - 4 weeks
Brand:
Adcol
Product Description

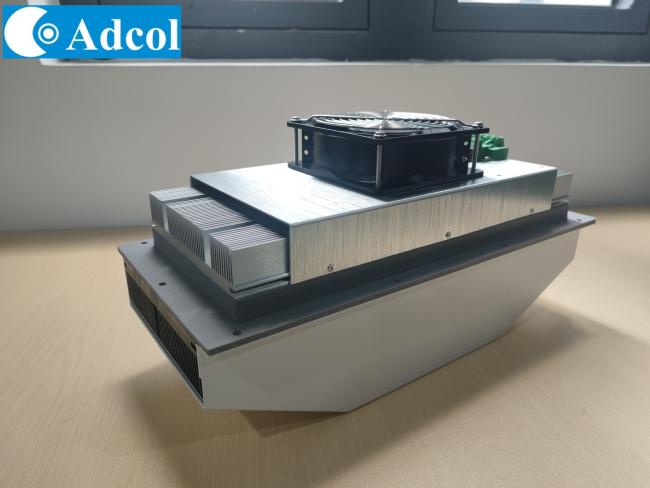

ATA200-24-00
Air to air thermoelectric Cooler Assembly
The ATA200-24 Thermoelectric air conditioner is designed for electronic cabinets
and environmental chambers. It can maintain ambient temperatures while removing
up to about200W. This model is available in 24VDC configurations. This air
conditioner is virtually maintenance-free, with no filters ambient to change, and it can
be mounted in any orientation, offering design flexibility with solid-state reliability.
Application
Our products are widely used in outdoor battery cabinet, indoor battery cabinet and other
kiosk which has the temperature and control request.
Technical requirements
- ATA200-24VDC consists of six portions - thermoelectric module, coldside heatsink,
hotside heatsink, coldside fan, hotside fan and monitoring unit.
- When power is supplied to the ATA200-24VDC, one side of the TEM will be cool
and theother side will heat.The cold/heat generated will be radiated to the surroundings
via the cold/hot side heatsink and fans.
- The cold side heatsink and fan direct the inner air into the cabinet to cool it, The hot
end side heatsink and fan direct the outside air for heat dissipating into the external environment.
- ATA200-24VDC both inner and external fan are blow in the heat sink and air come out
from two ends.
