110W Air-to-Air Thermoelectric Assembly designed for electronic cabinets, refrigeration and environmental chambers.

Price Negotiable

Price: Negotiation

MOQ: 1EA

Delivery Time: 3-4 weeks

Brand: ADCOL

Product Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

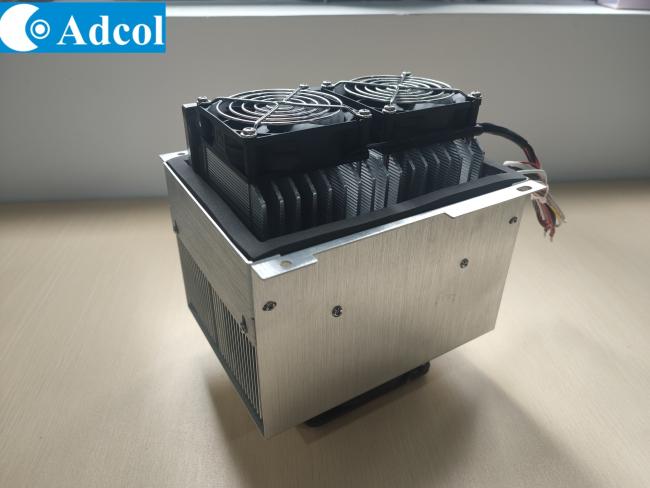

110W Air-to-Air Thermoelectric Assembly

1.Working principle

The ATA PowerCool Series is an Air-to-Air Thermoelectric Assembly (TEA) that uses impingement

flow to transfer heat. It offers dependable, compact performance by coolingobjects via convection.

Heat is absorbed and dissipated thru high density heat exchangers equipped with air ducted shrouds

and brand name fans. The heat pumping action is created by thermoelectric modules, which are custom

designed to achieve a high coefficient of performance (COP).

2.Introduction

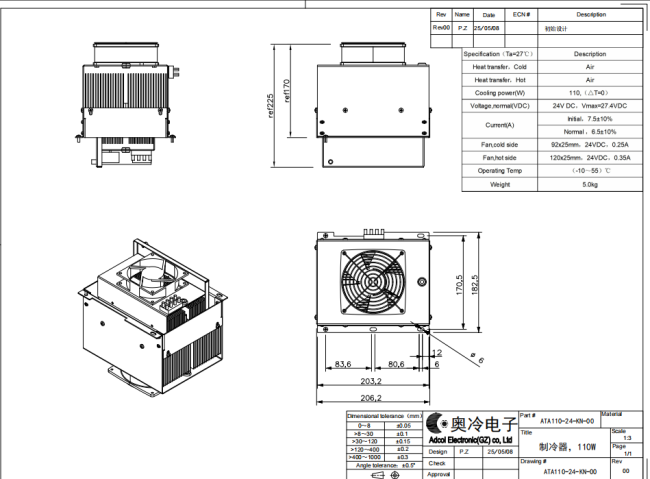

ATA110-24VDC Thermoelectric air conditioners are designed for electronic cabinets, refrigeration

and environmental chambers. They can cool to 72˚F below ambient or maintain ambient temperatures

while removing up to 280 BTU/Hr (@ 77˚F ambient). Use 12/24/48VDC configuration, it could generate

110W power; These air conditioners are virtually maintenance-free, with no filters to change, and they can

be mounted in any orientation, offering design flexibility with solid-state reliability.

3.Features

Compact design
Reliable solid-state operation
DC operation
RoHS compliant
IP55(IEC 60529)
Product design with IEC60950 Standards

4.Design Criterion

GB/T2423.38-1990 electric component basic environment test regulation R:water test method
GB/T2423.1-2001 electric component basic environment test, second section test A/B
IEC 60950-1:2005/GB4923.1-2011 IT device safety
EN 61000-3-2:2006；EN61000-3-3:2008；EN61000-6-1:2007；EN61000-6-3: 2007 EMC related test criterion
