300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics
Price:
Negotiation
MOQ:
1EA
Delivery Time:
3 - 4 weeks
Brand:
ADCOL
Product Description
Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.
The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

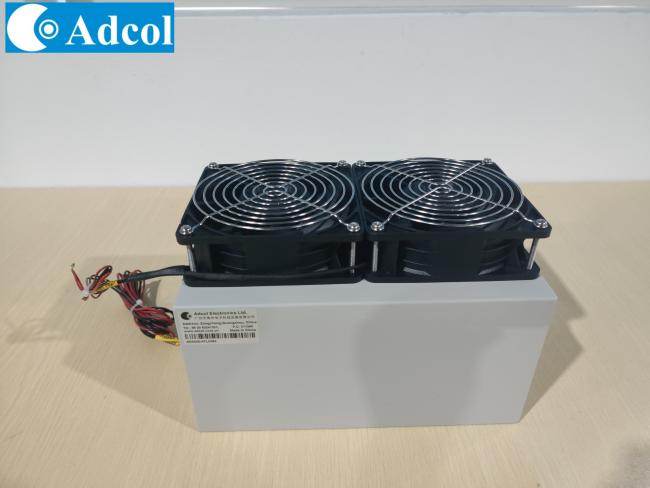

ATL300-24VDC Air to Liquid thermoelectric Cooler Assembly
1.Product Introduction
The ATL300-24VDC Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat.
Heat is absorbed through a liquid exchanger and dissipated by high density heatsink with fan.
It could remove up to 290W cooling, and is available in 24VDC configurations. Also it is virtually
maintenance-free, and can be mounted in any orientation, offering design flexibility with solid-state reliability.
2.Features
- 290W capacity rated at ΔT = 0ºC,Tambient = 30°C
- Refrigerant free - environmentally friendly
- Wide operating temperature range of –20°C to +60°C
- Shift between heating and cooling without using a heater
- Reduced noise and vibration with no moving parts
3.Application
- Analytical instrument
- Medical diagnostics
- Industrial laser
- Medical laser

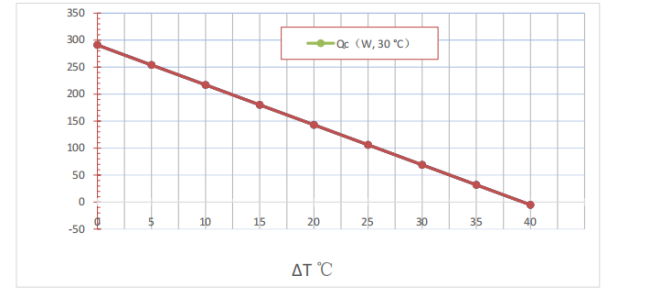

4. Performance Curve

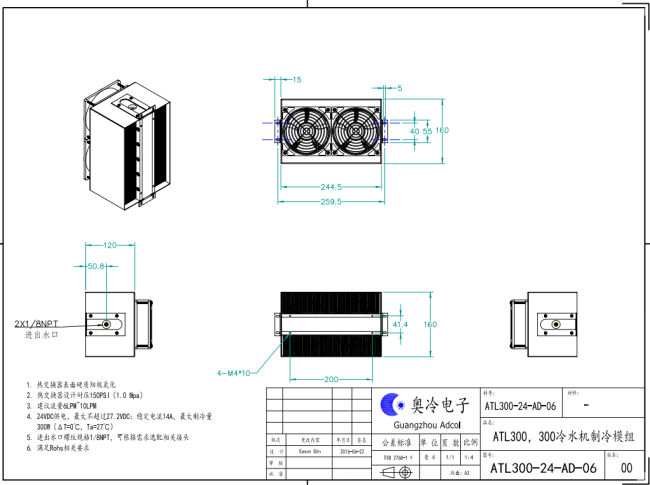

5.Drawing
