50W 24VDC Thermoelectric Air Cooler Can be used for Food/Consumer Refrigerator

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

ATA050-24VDC Air to air thermoelectric Cooler Assembly

1.Working principle

TEC air conditioner consists of 6 parts: peltier module (including sealing and insulation material),

cold end radiator, hot end radiator, cold end fan, hot end fan, monitoring module. When power supply

is connected to the TEC, one side of the peltier conduct cooling, and the other side of the peltier conduct

heating, the cool (heat) from which will diffuse to the surrounding environment through cold (hot) end

radiators and fans. The cold end radiator and cod end fan constitute the inside circulation for cooling the

cabinet internal environment, while the hot end radiator and hot end fan constitute outside circulation for

heat radiation to the external environment.

2.Product Introduction

The ATA050-24VDC Thermoelectric air conditioner is designed forelectronic cabinets and environmental chambers. lt canmaintain ambient temperatures while removing up to 50W.This model is available in 12VDC configurations. This airconditioner is virtually maintenance-free, with no filtersambient to change, and it can be mounted in any orientation.offering design flexibility with solid-state reliability.

3.Features

• 50W capacity rated at ΔT = 0ºC,Tambient = 30°C
• Refrigerant free - environmentally friendly
• Wide operating temperature range of –20°C to +60°C
• –20°C to +60°C Shift between heating and cooling without using a heater
• educed noise and vibration with no moving parts

4.Application

• Outdoor enclosures
• Outdoor/Indoor Kiosks and display
• Battery Cabinet
• Food/Consumer Refrigerator

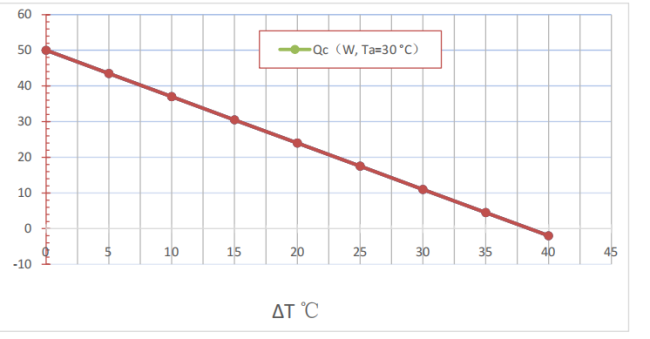

5.Performance Curve

6.Design drawing
