150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers
Price:
Negotiation
MOQ:
1
Delivery Time:
3 - 4 weeks
Brand:
Adcol
Product Description
Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.
The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.
150W Thermoelectric Recirculating Liquid Chiller
1.Product Introduction
The ARC Series is a bench top re-circulating chiller that offers dependable, compact performance by
controlling the temperature of a coolant in a liquid circuit. The coolant is re-circulated using a pump
with high MTBF. Heat from coolant is absorbed by a heat exchanger and dissipated thru high density
heat sinks equipped with brand name fans.The thermoelectric modules are custom designed to achieve
long life operation. The unit is regulated with an easy to use digital temperature controller and is housed
inside an aesthetic sheet metal casing. Also the chiller can provide the heating function to keep the circle
system at some Constant temperature point in the range.
2.Technical Specification
- Fast cooling and heating
- Easy to operate
- Environmentally friendly and refrigerant-free
- Quiet
- Programmable Digital Temperature Controller/ Auto-tune of PID control terms
- System Error Monitor and alarm
- Fluid inlet and outlet quick disconnect
- High reliability
3.Typical Application
- Medical Imaging Systems
- Medical Lasers
- Photonics Laser Systems
- Industrial Instrumentation
- Laboratory Testing

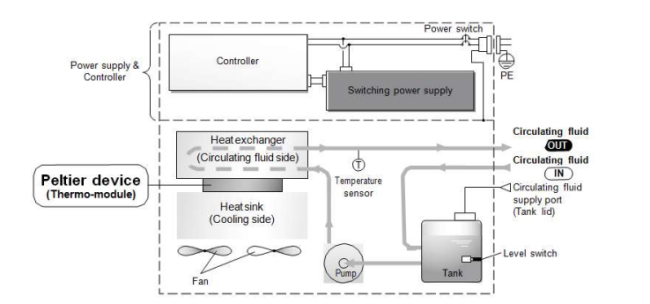

4.Structural Schematic

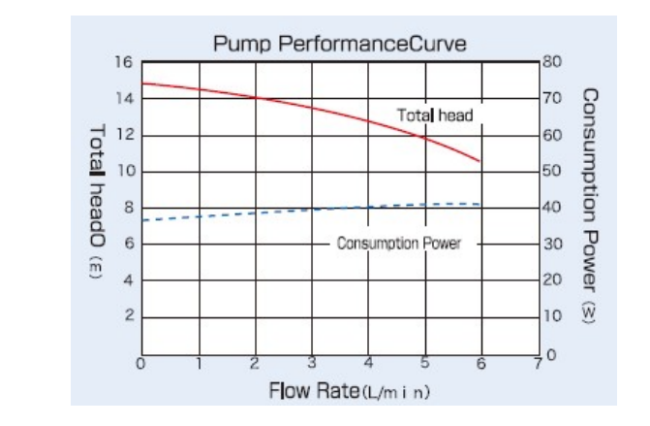

5.Pump Capacity

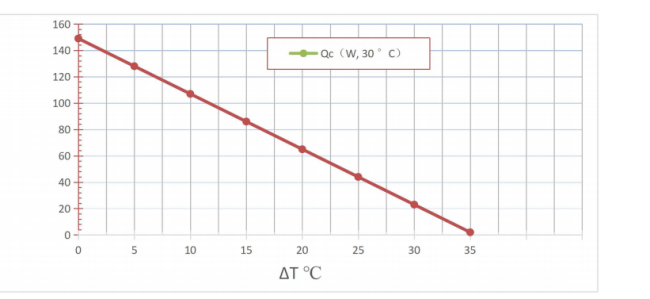

6.Cooling Capacity
Delta T =T ambient – T liquid – Degree C;
Cooling Capacity Qc – W
Liquid: Pure Water with current rate of Alcohol
ST: Standard unit, cooling only

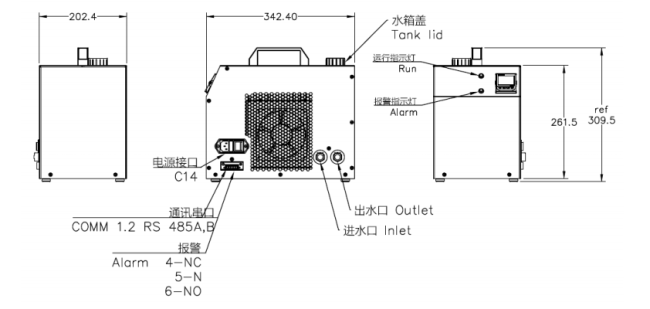

7. Dimension(mm)
