80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.
Price:
Negotiation
MOQ:
1EA
Delivery Time:
3 - 4 weeks
Brand:
ADCOL
Product Description
Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.
The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

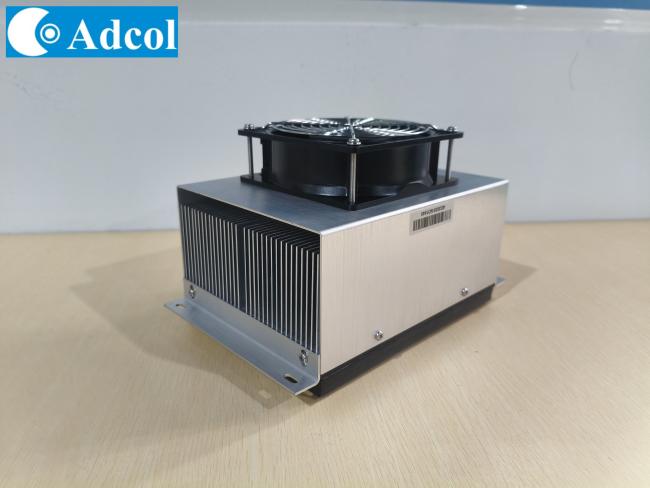

ATP080-24 Air to Plate thermoelectric Cooler Assembly
1.Product Introduction
The ATP080-24 Thermoelectric air plate is designed for electronic cabinets and environmental chambers.
It can maintain ambient temperatures while removing up to 80W. This model is available in 24VDC
configurations. This air cold plate is virtually maintenance-free, with no filters ambient to change,
and it can be mounted in any orientation, offering design flexibility with solid-state reliability
2.Features
- 80W capacity rated at ΔT = 0ºC,Tambient = 30°C
- Refrigerant free - environmentally friendly
- Wide operating temperature range of –20°C to +60°C
- Shift between heating and cooling without using a heater
- Reduced noise and vibration with no moving parts
3.Application
- Analytical instrument
- Medical diagnostics
- Industrial device
- Food and Beverage Cooling

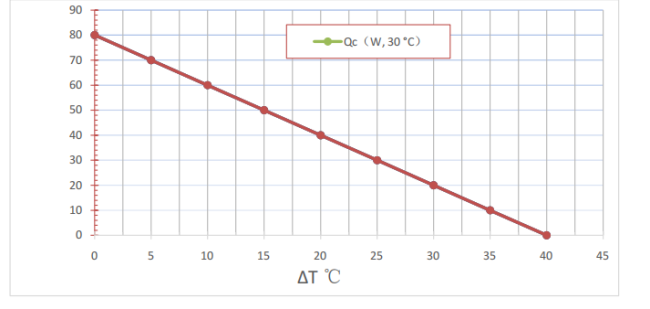

4.Performance Curve

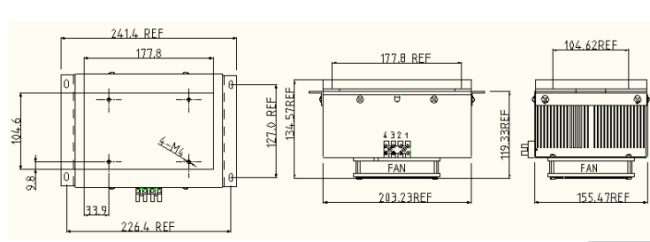

5.Dimension (mm)

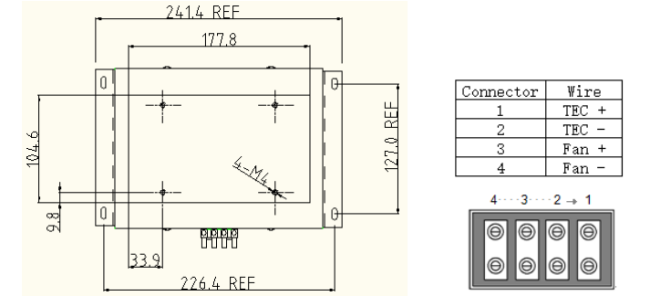

6.Installation cut hole and Connector (mm)
