Peltier Thermoelectric Cooler Industrial Air Conditioner For Industry Enclosure
Price:
Negotiation
MOQ:
1pcs
Delivery Time:
3 - 4 Weeks
Brand:
Adcol
Product Description

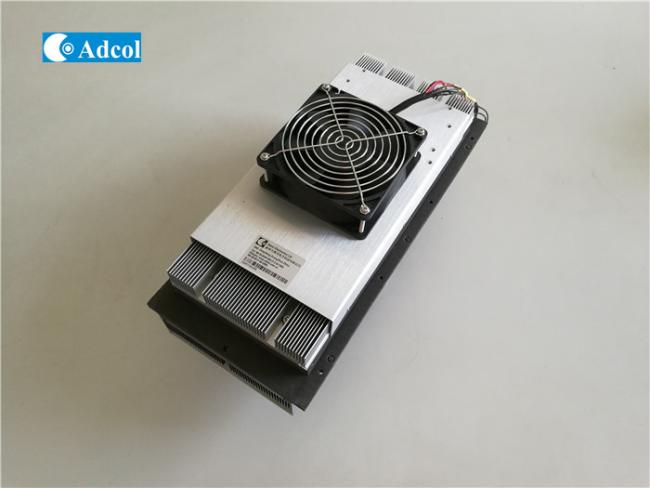

Peltier Thermoelectric Cooler Industrial Air Conditioner For Industry Enclosure
ATA150-24VDC Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers. They can cool to 72˚F below ambient or maintain ambient temperatures while removing up to 149W heat. Use 24/48VDC configuration, it could generate 149W power; These air conditioners are virtually maintenance-free, with no filters to change, and they can be mounted in any orientation, offering design flexibility with solid-state reliability.
1 - Wire
| Connector | Wire |
| 1 | TEC + |
| 2 | TEC - |
| 3 | FAN + |
| 4 | FAN - |
2 - Database:(ref)
| items: | Data |
| Part Number: | ATA150-24-48VDC |
| Description: | Air to Air TEC cooling |
| Cool Capacity | 149W |
| Input Voltage | DC24 or 48V |
| Working Temperature | 0~60˚C |
| Current | 9.0 or 4.5A |
| Start Current | 10.5 or 5.5A |
| Hotside Fan current | 0.4A |
| Coldside Fan Current | 0.2A |
| Unit Weight | Est. 5.0kgs |
| Install hole size | 254x154mm |
| Dimension (LxWxH mm) | 300x180x167 |

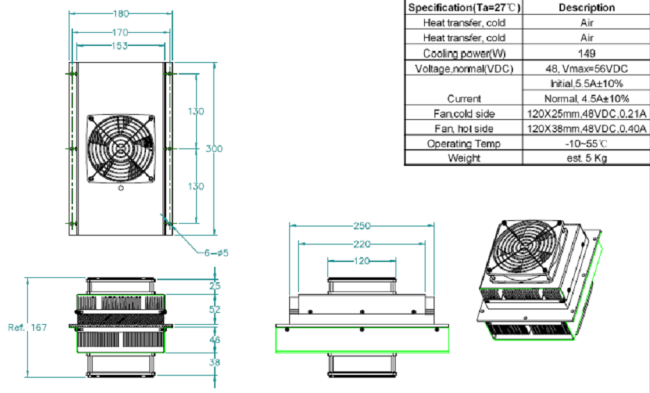

3 – Drawing (in mm):
