5.7W Peltier Thermoelectric Modules For Thermoelectric Assembly
Price:
Negotiation
MOQ:
10pcs
Delivery Time:
3 - 4 weeks
Brand:
Adcol
Product Description

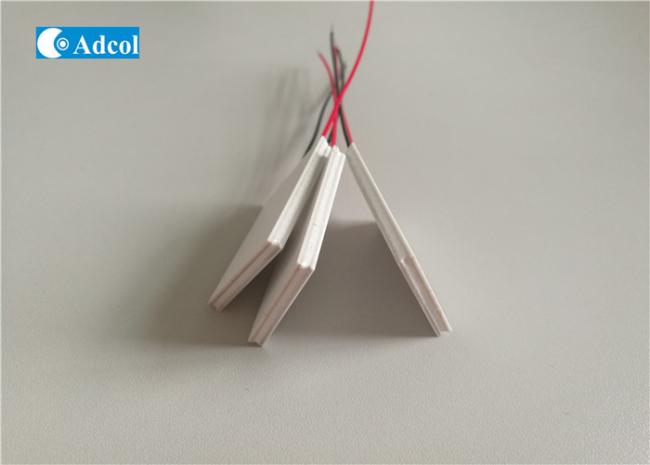

5.7W Peltier Thermoelectric Modules For Thermoelectric Assembly

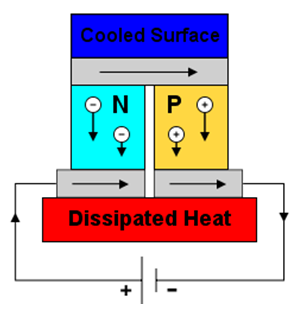

Simplest TEC
• The simplest TEC consists of two semiconductors:
–One p-type and one n-type (one "couple") semi-conductor, connected by a metallic conductor.
–When a positive DC voltage is applied as shown, electrons pass from the p-type to the n-type element, and the cold-side temperature decreases as the electron current absorbs heat, until equilibrium is reached.
–Heat is pumped from the cold junction to the hot junction. The net cooling is diminished by the effects of Joulean losses generated by the current, and heat conduction through semiconductor material from the hot to the cold junction (back conduction).
| Model | TEC1-1705T | |
| Imax(A) | 5 | |
| Qmax(W) | 5.7 | |
| Vmax(V) | 2.06 | |
| Tmax(℃) | 67 | |
| Dimension (mm) |
A | 15 |
| B | 15 | |
| C | 15 | |
| D | 4.1 | |
