ISO9001 Multi Stage Peltier Cooler Thermoelectric Module For Electronic Cooling
Price:
Negotiation
MOQ:
10pcs
Delivery Time:
3 - 4 weeks
Brand:
Adcol
Product Description

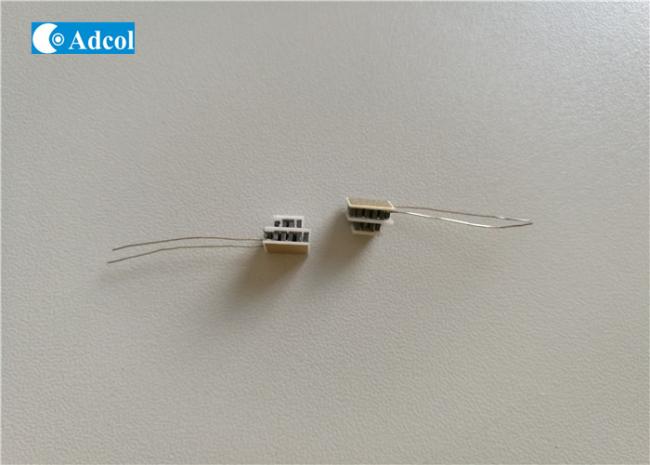

ISO9001 Multi Stage Peltier Cooler Thermoelectric Module For Electronic Cooling
What Does Qmax Mean ?
• Qmax is the maximum load to the thermoelectric device that produces ΔT = 0.
• Qmax, Imax, and Vmax occur at the same operating point to produce ΔT= 0.
• It specifies an end point on the load line.
• Qmax does not project the maximum heat that can be handled by the thermoelectric device.
–If the load goes beyond, the TEC will still pump the heat, but the thermal load simply winds up at an above-ambient temperature. (i.e. you have to look at different performance curve.)
| Model | 2CP 040 065-31-17 | |
| Imax(A) | 2.1 | |
| Qmax(W) | 3.11 | |
| Vmax(V) | 3.8 | |
| Th=25℃ Tmax(℃) | 81 | |
| Dimension (mm) |
A | 11.5 |
| B | 11.5 | |
| C | 15 | |
| D | 15 | |
| E | 6.6 | |
