Portable Thermoelectric Cooling System Peltier Cold Plate Cooler

Price Negotiable

Price: Negotiation

MOQ: Thermoelectric Cooling Peltier Plate Cooler

Delivery Time: 3 - 4 weeks

Brand: Adcol

Product Description

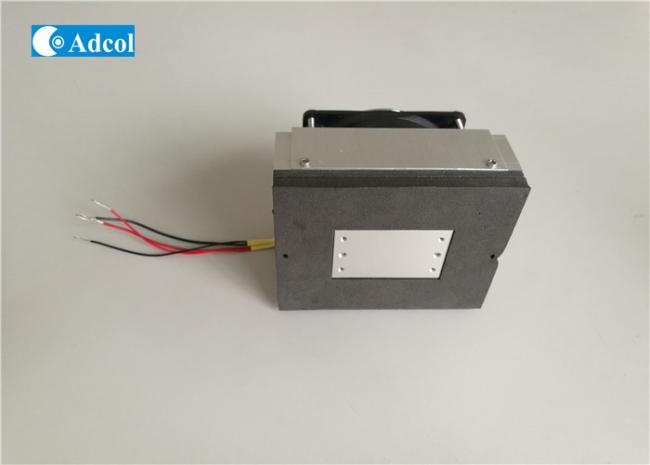

Portable Thermoelectric Cooling System Peltier Cold Plate Cooler

Solid surfaces are cooled Directly (such as aluminium walls of a small enclosure or surface of a processor) and the heat is dissipated to the Air in the surroundings.

Pros & Cons – TE technology

Pros

•Compact solutions possible

•Can be installed in any position

•Solid state design offers reliability and ruggedness

•Cooling & heating

•Accurate temp control easy to achieve

•Easy to design in almost any shape

•Environmentally friendly

Cons

•Only DC operation. Power supply needed for mains operation.

•Expensive per Watt of cooling power (300W is normal “limit”)

•Acoustic noise problematic for larger TEAs

•Lower efficiency (COP) compared to compressor technology

Adcol Item		ATP050-12VDC
Description		Air to Plate Cooling System
Cooling Capacity(W)		42
Voltage(VDC)		12
Ambient Temperature		0-60︒C
Running Current(A)		8.9
Peak Current(A)		10.8
Weight(kg)		1.1
Dimension (mm) (Plate side)	Length	80
	Width	60
	Height	12
Dimension (mm) (Air side)	Length	160
	Width	122
	Height	70
