Semiconductors Thermoelectric Air Cooler 100W 24VDC For Refrigeration Chamber
Semiconductors Thermoelectric Air Conditioner / Thermoelectric Air Cooler 100W 12VDC

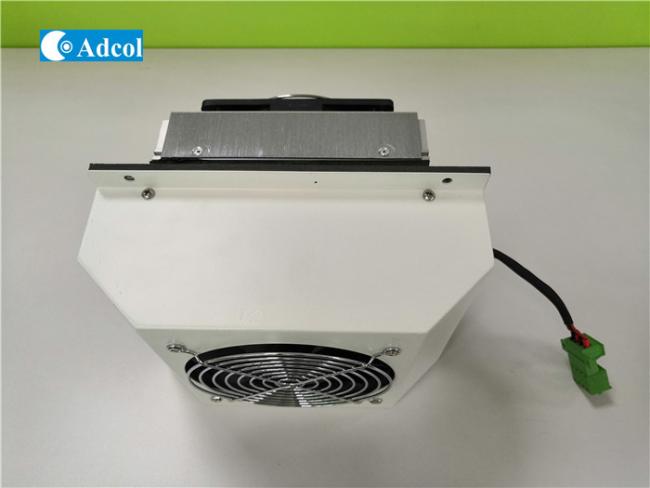

ATA100-24VDC Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers. They can cool to 72˚F below ambient or maintain ambient temperatures while removing up to 280 BTU/Hr (@ 77˚F ambient). Use 24VDC configuration, it could generate 80W power, if use 12VDC configuration, it could generate 100W power. These air conditioners are virtually maintenance-free, with no filters to change, and they can be mounted in any orientation, offering design flexibility with solid-state reliability.
Wiring Schematic (Power Connector)
| Position | Description |
| 1 | TEC + |
| 2 | TEC - |
| 3 | FAN + |
| 4 | FAN - |
1 – Specification:
| Model: | ATA100-24VDC |
| Description | Air to Air cooling System |
| Capacity- Qmax | 100 Watts |
| Input Voltage | 24 VDC |
| Working. Ambient Temp. | 0~60˚C |
| TEM Current (Running) | 9.0 amps |
| TEM Current (Start) | 11.0 amps |
| Hot Side Fans Current | 0.4 amps |
| Cold Side Fans Current | 0.3 amps |
| Weight | Est.3.0 kg |
| Rating Maintained | NEMA 24 |
| Overall Dimensions | 203mm x 155mm x 213mm |
