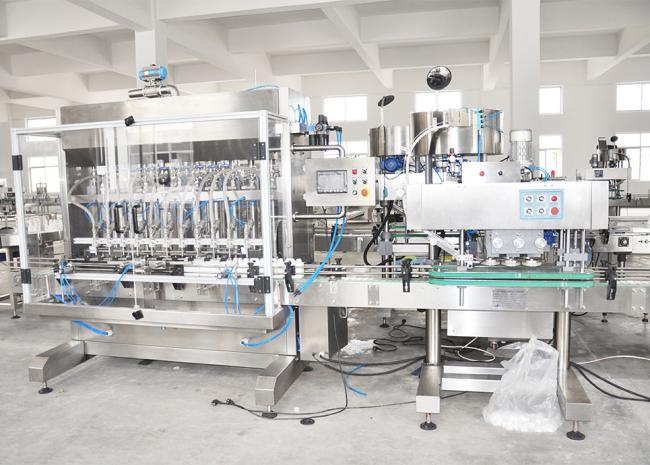

3000 B/H 1L Pharmaceutical Liquid Filling Machines For Pesticide / Chemical
Automatic 1L Pesticide Liquid Bottle Filling Machine 10 Nozzles Chemical Liquids Filling Machine For 3000 B/H
Packaging Details: export standard wooden case
Delivery Time: 50 working days
Pesticide Liquid Bottle Filling Machine is a volume type liquid filling machine which suitable for many products , such as honey , mayonnaise,cream ,grease and so on .
two servo motor control;
The adjustment of filling volume can be set directly on the touch screen
Filling part of machine:
Contact part material :SS 316 ,other parts SS304
Bottle fixer material: Nylon
Description:
Suitable for material: exposurer, sc, cream class contour viscosity materials.
Accurate measurement: adopt servo control system, ensure the piston can always reaches constant position.
Variable speed filling: in filling process, when close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution.
Convenient adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.
Selecting the international famous brand electrical components configuration. Mitsubishi Japan PLC computer, omron photoelectric, Taiwan is produced touch screen, ensure the quality of its outstanding with long-term performance.
| Model | Unit | SFC | ||||
| Nozzle Number | PCS | 4 | 6 | 8 | 10 | 12 |
| Filling volume | Ml | 1500-5600 | 1000-5000 | 500-3000 | 200-1000 | 300-2000 |
| Production capacity | Barrel/h | 720-1300 | 1200-1900 | 1400-2600 | 1600-3200 | 1800-4000 |
| Quantitative error | % | ≤0.5% | ||||
| Source voltage | V | Three-phase four-wire system AC220V 380V ±10% | ||||
| Consumed power | KW | 2.5 | 2.5 | 2.8 | 3.5 | 4 |
| Gas supply pressure | MPA | 0.55-0.8 | ||||
| Air consumption | M3/min | 0.8 | 1 | 1.2 | 1.2 | 1.8 |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
