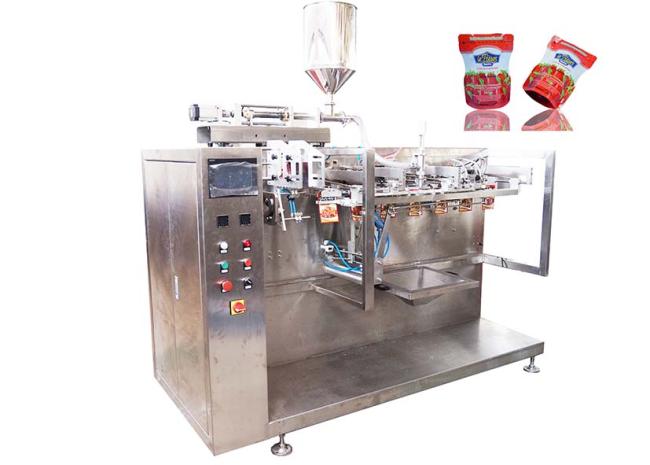

Automatic Sauce Horizontal Pre-made Pouch Paste Packaging Machine For Doypack,3/4 sides sealed bags,pillow bags, Spout Bag

Pouch Packaging Machine - Horizontal Fill and Seal
Features:

• Automatic Pre-made Pouch Packing Machine designed by Korea
• Equipped with a 10'' PLC touch screen with graphic intraface and an automatic lubricating system.
• Washing down frame, parts above the table made by 304# stainless steel and alumina material.
• The whole machine weights 1.8 ton, and its grippers can work at the 5 KGS bag loading.
• Options for 6, 8 ,10 workstations; also with vacuum rotary packaging machine with rotary vacuum chamber.
• Verify weight in weighing station, and compensate by servo filling system.
• Vacuum pouch in sealing postion
• Spout at center of pouch


Safe and convenient:

• It alarms and shows fault location when errors occur, which is easy to fix
• It is equipped with protective door, which prevents dust and machine from injuring workers accidentally
• It is also equipped with prompt facility of anti-misoperation, which prevents machine from damaging

options:

• Normal bag clamping (switch between spout bag clamping and Normal bag clamping)
• Multiple high speed filling machines.



Technical Parameters of Pre-made Pouch Packaging Machine:

Additional Info

• Pouch Type:Stand-up Bag, Doy Pack, Gusset Bag, Spout Bag, Paper bag, Zipper Bag
• Working Station:6 Working-Station
• Filling Range:5-100g
• Capacity:Up to 50 Bags/Min(Depends on products’ natures and filling weight)
• Dosing System:Auger Filler, Piston Filler, Volumetric Cup
• Power Supply:Per customer specification

Versatile ---horizontal packaging machine characteristic
Multi-use of one machine ---separating feeding,to satisfy a variety of materials packaging requirements(powder,liquid,paste,solid,)
Multi-bag of one machine---after simple adjustment, a packaging machine may meet the packaging needs of a variety of bags.(such as three-side-seal, four-side-seal, doy pack, zipper, spout)
Multi-material of one bag---multi-position blanking way, to overcome the disadvantages of packaging machine filling a single item in the past, the packaging machine is mixed to achieve a variety of materials packaging, to meet the ratio correctly.(such as oil, water, mixing materials)
Reduce costs---used roll firm packing, reduce the bag cost. So a horizontal= bagging machine + packaging machines.
Stable operation---using cam drive, purely mechanical movements, and the structure is sample.
Easy to maintain---simple mechanical structure, large space, easy to maintain.
Low failure rate---very few control components and detection device, avoid electronic failure. Purely mechanical construction reduces the failed node.
perfect skin --- Guaranteed by the unique, advanced and mature technology, product bags flat in appearance and the seal does not clamp the material did not leak.
reducing loss --- Packaging to ensure high precision, reducing material consumption.

Main technical parameters:



After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
