ASTM A123 Standard A36 Material 100mm Cross Bar Highways Field Bar Steel Grating
Price:
Negotiable
MOQ:
10 square meter
Delivery Time:
5-9 working days
Brand:
GNEE
Product Description
Product Description

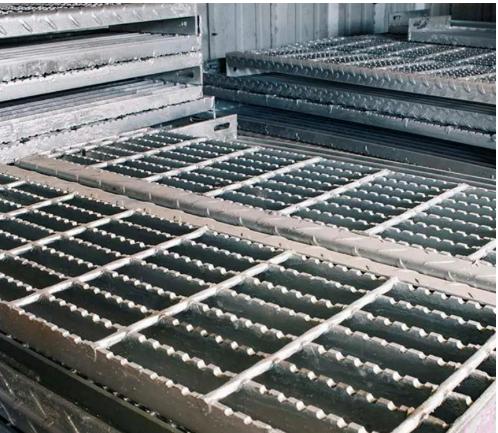

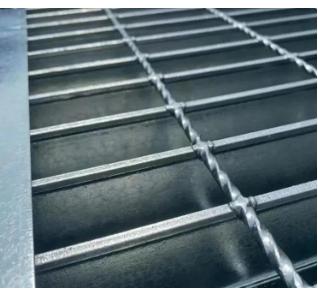

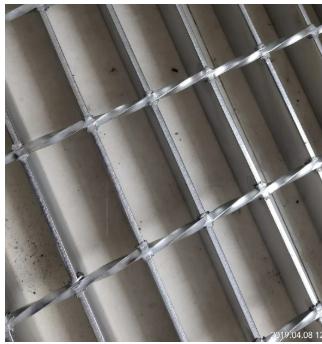

Steel grating product with serrated bearing bar. Due to its scientific and reasonable structure design, it is usually used in parts that require high product bearing capacity or appearance. It is a steel grating product manufactured from a certain size of serrated steel through slotting (hole), inserting, welding, finishing and other processes. It is a steel grating product with a large bearing capacity and used for heavy bearing capacity. The industrial platform has a large safety factor. Surface treatment can be divided into galvanizing, painting and dipping.
Specification
| Product Name | Customized Anti-slip Serrated Steel Grating | ||
| Material | Mild Steel(Low Carbon Steel),S235,S275JR,A36,or Stainless Steel SS304,SS316 etc. | ||
| Surface treatment | Hot dipped galvanized, polished or untreated |
Grate size | as customer's request |
| Bearing bar width x thickness |
25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,...75x10mm | ||
| Bearing bar pitch | 12.5,15,20,23.85,25,30,30.16,30.3,34.3,35,40,41,60mm. US standard:1"x3/16",11/4"x3/16",11/2"x3/16",1"x 1/4", 11/4"×1/4",11/2"x 1/4"etc. |
||
| Cross bar pitch | 38,50,76,100,101.6mm or custom | ||
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar(widthxthickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar(widthxthickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |

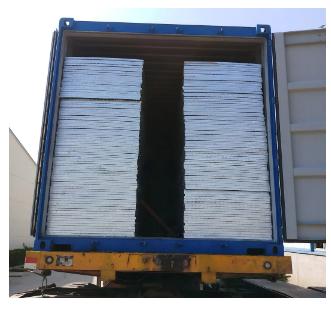

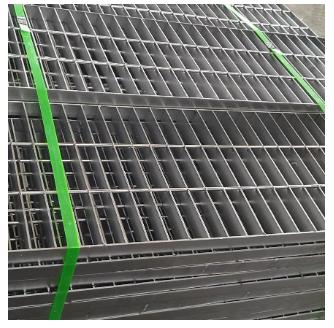

Packaging and Shipping
