Premium Tree Pool Cover with Durable Steel Grating Design
Price:
Negotiable
MOQ:
10 square meter
Delivery Time:
5-9 working days
Brand:
GNEE
Product Description
Special shaped steel grating is based on the actual needs of customers to produce a variety of irregular shape of steel grating. Special shaped steel grating has anti-slip surface, high load bearing capacity, corrosion resistance. So it widely used as well covers, industry operating platform of factory and floors of fountain.

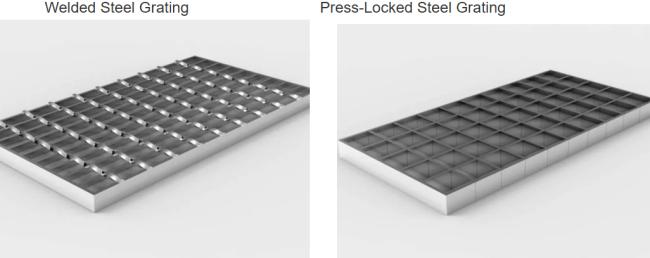

Stainless steel grating is regarded as industrial grade bar grating, which is extremely strong, durable and corrosive resistant for all load bearing applications and is primarily used for pedestrian and light vehicle traffic.Two production methods:
| Product Name | |||||||
| Material | Mild Steel(Low Carbon Steel),S235,S275JR,A36,or Stainless Steel SS304,SS316 etc, Alumium 3003, 5052 | ||||||
| Surface treatment | Hot dipped galvanized polished or untreated |
||||||
| Bearing bar (width x thickness) | 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,75x10mm | ||||||
| Bearing bar pitch | 12.5,15,20,23.85,25,30,30.16,30.3,34.3,35,40,41,60mm. | ||||||
| US standard:1"x3/16",11/4"x3/16",11/2"x3/16",1"x 1/4", | |||||||
| 11/4"×1/4",11/2"x 1/4"etc. | |||||||
| Cross bar pitch | 38,50,76,100,101.6mm or customized | ||||||
| Pitch of Bearing bar |
Cross-bar Pitch |
Specification of bearing bar(widthxthickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 30 | 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 40 | 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Pitch of Bearing bar |
Cross-bar Pitch | Specification of bearing bar(widthxthickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 30 | 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 40 | 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |

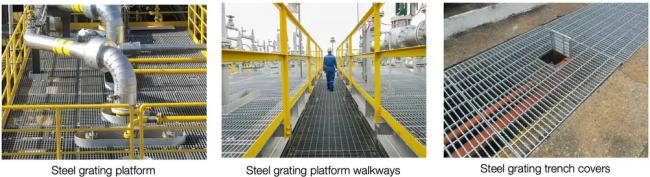

| Application | Working Platform, Handrail Infill, Walkway, Bridge decking, Stair Treads, Transformer Reservoir,Trench Cover, Ceiling, Grating Fence Sunshade Panels |
||||||
