Hot DIP Galvanized Serrated Stainless Steel Stair Treads for Metal Walkways and Bar Grating
Price:
Negotiable
MOQ:
2PCS
Delivery Time:
Shipped in 20 days after payment
Brand:
Gnee
Product Description
Hot DIP Galvanized Catwalk Serrated Grating Metal Walkways

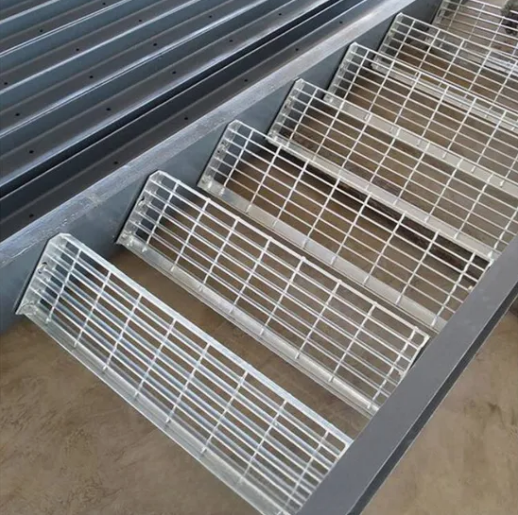

Step plates, also known as stair tread plates or steel ladder plates, are specialized grating plates used on platforms and staircases. Available in two primary installation methods: welded fixation for permanent, economical installations, and bolted fixation for applications requiring disassembly capabilities.
Installation Options
- Welded Fixation: Directly welded to keel structure - economical, durable, permanent installation
- Bolted Fixation: Features thickened side plates with drilled holes - allows for disassembly and maintenance
Product Specifications
| Material | Carbon Steel, Stainless Steel, Aluminum |
|---|---|
| Surface Treatment | Hot Dipped Galvanized, Spray Painting, Polished and Powder Coated |
| Bearing Bar Type | Plain (Flat) Bar, Serrated Bar, I-Bar |
Available Models & Customization
Eight different tread models available with welding installation. Four front guard plate options: without guard plate, with patterns, with stripes, and with holes. Custom configurations available upon request.
Grating Types & Applications
Serrated Bar Grating
Features serrated edges on bearing bars for enhanced non-slip performance and increased safety. Ideal for industrial platforms, walkways, stair treads, and areas exposed to wet or oily conditions. Durable, corrosion-resistant when galvanized, with high load-bearing capacity suitable for both heavy-duty and light-duty applications.
Plain (Flat) Bar Grating
One of the most widely used grating types due to versatility, durability, and cost-effectiveness. Features smooth, flat surface ideal for applications requiring load-bearing strength and stability. Commonly used in industrial flooring, walkways, drainage pit covers, stair treads, platforms, and ventilation grilles. Open grid design allows efficient drainage and ventilation for both indoor and outdoor environments.
Full Grating
Both bearing and cross bars have the same cross-section and equal height. Bearing bars feature fully supported un-slotted undersides. Offers better screening capabilities and more appealing design compared to standard press-locked grating.
