Hot Dipped Galvanized Serrated Steel Grating with 25x5 mm Bearing Bar for High Strength Platforms
Price:
Negotiable
MOQ:
2PCS
Delivery Time:
Shipped in 20 days after payment
Brand:
Gnee
Product Description

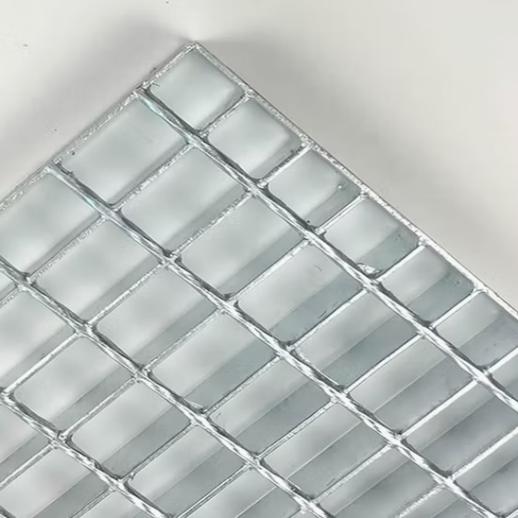

Hot Dipped Galvanized Serrated Bar Steel Grating
Steel grating, also known as bar grating, features a square grid pattern formed by flat bearing bars and cross round bars. This versatile product is primarily used as gutter covers, steel structure platform walkways, and stair treads for steel ladders.
Material Composition
Typically manufactured from carbon steel with hot-dip galvanized surface treatment to prevent oxidation. Also available in stainless steel and aluminum variations.
Classification Types
- By Welding Method: Machine forge welding and manual welding
- By Surface Type: Flat, serrated (tooth), and I-bar configurations
- By Application: Trench covers, platform walkways, stair treads
- By Material: Mild steel, aluminum, stainless steel
Product Features
- Structure: Welded construction with flat steel and cross/round bars at precise intervals
- Performance: High strength-to-weight ratio, lightweight design, exceptional load-bearing capacity
- Surface Protection: Hot-dipped zinc coating provides superior corrosion resistance
Technical Specifications
Special materials, high zinc coatings, and custom styles available upon request
| Material Standards | ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel |
|---|---|
| Bearing Bar Dimensions | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…100x10mm I-bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 US Standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8" |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm US Standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" |
| Surface Treatments | Untreated (black), Hot-dipped galvanized, Powder coated, Electroplated, Painted, or custom requirements |
| Grating Styles | Plain/Smooth, Serrated/Teeth, I-bar, Serrated I-bar |
| Packing Options | Bandage and Paperboard (for neat steel plates) Screw Locking Method (4 screw rods for high strength) Steel Pallet (traditional export packing) |
| Payment Terms | T/T, L/C, Western Union, Credit Card, Trade Assurance |
