Hot Dipped Galvanized Steel Bar Grating with Plain Style and Serrated Bearing Bar for Heavy Duty Platforms
Price:
Negotiable
MOQ:
2PCS
Delivery Time:
Shipped in 20 days after payment
Brand:
Gnee
Product Description
Hot-Dipped Galvanized Steel Grating
Our hot-dipped galvanized steel grating is available in three specialized types: Plain Style, Serrated Style, and I Bar Type. These durable grating solutions are engineered for industrial applications including steel structure platforms, stair treads, walkways, drainage systems, and well covers.
Custom Manufacturing Capabilities
We offer both standard steel grating products and custom-designed solutions tailored to your specific project requirements and dimensional specifications.

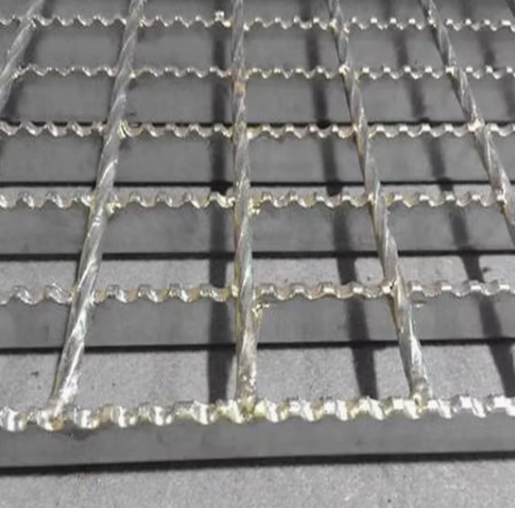

Serrated Steel Grating Features
Our serrated bearing bar grating features a scientifically engineered structure designed for applications requiring superior load-bearing capacity and enhanced safety performance. Manufactured through precision slotting, inserting, welding, and finishing processes.
- Exceptional load-bearing capacity for heavy industrial platforms
- Enhanced safety factor for demanding applications
- Multiple surface treatment options: galvanizing, painting, or dipping
Product Specifications
- Structure: Welded construction with flat steel and cross/round bars at precise intervals
- Features: High strength-to-weight ratio, lightweight design, superior load-bearing capacity
- Surface: Hot-dipped zinc coating provides exceptional corrosion resistance
Technical Specifications Table
| Type | Width mm | Thick mm | KG/m | Clear Span mm | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G505/30/50 | 50 | 5 | 80.9 | U | 2361 | 590 | 262 | 147 | 94 | 65 | 48 |
| D | 0.14 | 0.55 | 1.24 | 2.2 | 3.45 | 4.97 | 6.82 | ||||
| G505/30/100 | 77.9 | C | 236 | 118 | 78 | 59 | 47 | 39 | 33 | ||
| D | 0.11 | 0.44 | 0.99 | 1.77 | 2.77 | 3.99 | 5.39 | ||||
| G455/30/50 | 45 | 5 | 73.4 | U | 1912 | 478 | 212 | 119 | 76 | 53 | 39 |
| D | 0.15 | 0.61 | 1.38 | 2.45 | 3.83 | 5.56 | 7.62 | ||||
| G455/30/100 | 70.4 | C | 191 | 95 | 63 | 47 | 38 | 31 | 27 | ||
| D | 0.12 | 0.49 | 1.09 | 1.94 | 3.07 | 4.35 | 6.06 | ||||
| G355/30/50 | 35 | 5 | 58.4 | U | 1156 | 289 | 128 | 72 | 46 | 32 | 23 |
| D | 0.2 | 0.79 | 1.77 | 3.16 | 4.94 | 7.17 | 9.61 | ||||
| G355/30/100 | 55.4 | C | 115 | 57 | 38 | 28 | 23 | 19 | 16 | ||
| D | 0.16 | 0.62 | 1.4 | 2.46 | 3.97 | 5.7 | 7.69 | ||||
| G255/30/50 | 25 | 5 | 43.4 | U | 590 | 147 | 65 | 36 | 23 | 16 | 12 |
| D | 0.28 | 1.1 | 2.47 | 4.35 | 6.82 | 9.92 | 13.9 | ||||
| G255/30/100 | 40.4 | C | 59 | 29 | 19 | 14 | 11 | 9 | 8 | ||
| D | 0.22 | 0.87 | 1.98 | 3.39 | 5.25 | 7.5 | 10.71 |
Product Images
