Hot Dipped Galvanized Steel Grating with Serrated Bearing Bars for Stair Tread and Trench Cover Applications
Price:
Negotiable
MOQ:
2PCS
Delivery Time:
Shipped in 20 days after payment
Brand:
Gnee
Product Description
Hot Dipped Galvanized Steel Grating
Steel grating is available in varied forms suitable for different applications and overall load conditions. Hot dip galvanizing or painting provides excellent appearance, durability, and enhanced economy. Galvanized steel grating is widely used in Power Stations, Chemical Industry, Oil & Gas Industry, Boiler Plants, Mining, and Refineries.
Material Options
Mild Steel (Low Carbon Steel) or Stainless Steel
Technical Specifications
Plain type and serrated type bearing bar specifications range from 20 x 3 to 100 x 10. I-section type specifications include 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, and more.
| No. | Item | Description |
|---|---|---|
| 1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8" etc |
| 2 | Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc |
| 4 | Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated / teeth, I bar, serrated I bar |
| 7 | Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |
Applications
- Stair tread grating for safe and durable steps

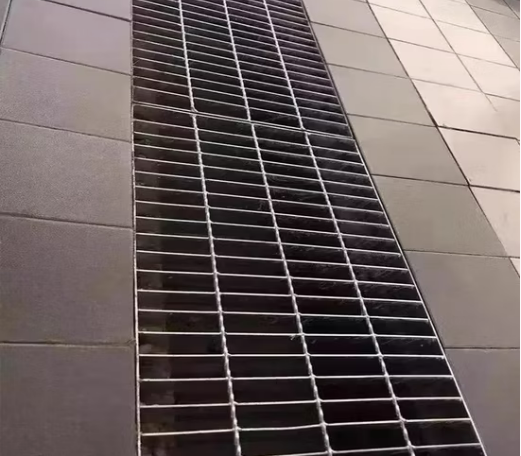

- Municipal engineering drainage trench covers for effective water drainage and ground protection
- Port, parking lot, farmland, and other industrial applications
