Hot Dipped Galvanized 32 X 5mm Plain Bar and Twisted Bar Steel Grating for Heavy Duty Flooring
Price:
Negotiable
MOQ:
2PCS
Delivery Time:
Shipped in 20 days after payment
Brand:
Gnee
Product Description
Hot Dipped 32 X 5mm Plain Bar Grating Flat Bar and Twisted Bar Galvanized Steel Grating
Steel bar grating with high strength and firm structure is manufactured from carbon steel, aluminum steel, or stainless steel. Available in four manufacturing types: welded, press-locked, swage-locked, and riveted gratings. Surface options include smooth and serrated designs. With various styles and sizes available, steel gratings are widely used in stair treads, walkways, platforms, floors, covers, wheeled equipment, security screens, and heavy-duty construction applications.
Material Specification
Available in Mild Steel (Low Carbon Steel) or Stainless Steel
Product Specifications
Plain and serrated type bearing bar specifications range from 20 x 3 to 100 x 10 mm. I-section type specifications include 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, and 75 x 7 x 4 mm.
Applications
- Stair tread grating for safe footing
- Municipal drainage trench covers for effective water drainage
- Platform walkway grating for pedestrian and vehicle access in ports, parking lots, and agricultural settings
Technical Specifications
| Item | Description |
|---|---|
| Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3; US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8" |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm; US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" |
| Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel |
| Surface Treatment | Black, self color, hot dip galvanized, painted, spray coating |
| Grating Style | Plain / Smooth, Serrated / teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |

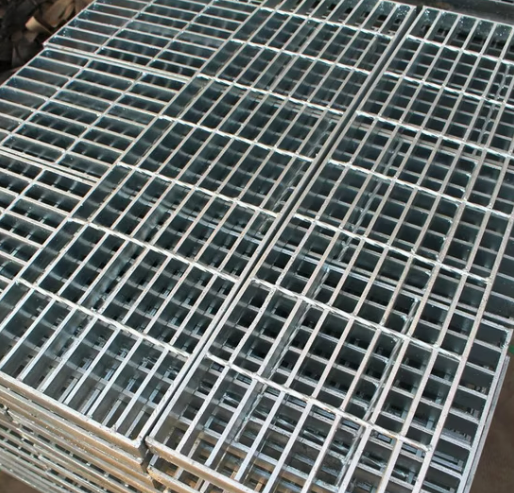

Product Images
