Product Description
China Leading Manufacturer of Steel Bar Grating Drainage Grating

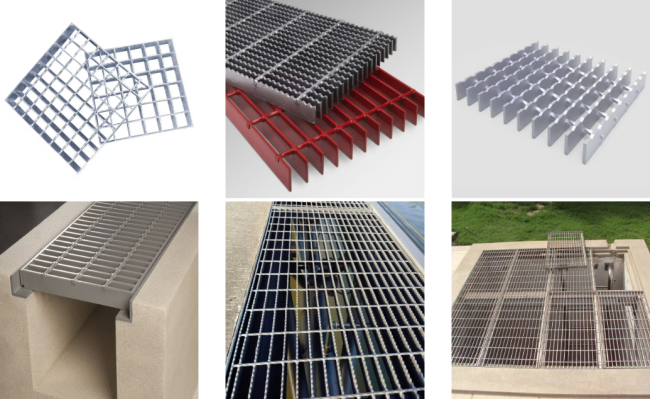

Steel Bar Grating, also known as Grating, Bar Gratings or Welded Steel Bar Grating, is an extremely strong and durable solution for all load bearing applications. It is primarily used for pedestrian and light vehicle traffic areas. Available in various bearing bar spacing and thicknesses to meet different application and load requirements, with options for smooth top or serrated surfaces for enhanced slip resistance.
Ordering Information
When placing your order, please provide the following specifications:
- Material type
- Specification code of steel bar grating
- Cross bar type and size
- Thickness of checkered steel plates, or all parameters of steel mesh panels (expanded steel mesh, perforated steel mesh, steel wire mesh panels)
- Overall size
- Surface treatment
- Order quantity
- Other technical details (if applicable)
- All commercial details
Steel Bar Grating Specifications
| Vertical Bar Spacing | Horizontal Bar Spacing | Specification of Supporting Flat Steel (Width × Thickness) | |||||
|---|---|---|---|---|---|---|---|
| 20 × 3 | 25 × 3 | 32 × 3 | 40 × 3 | 20 × 5 | 25 × 5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G323/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Vertical Bar Spacing | Horizontal Bar Spacing | Specification of Supporting Flat Steel (Width × Thickness) | |||||
|---|---|---|---|---|---|---|---|
| 32 × 5 | 40 × 5 | 45 × 5 | 50 × 5 | 55 × 5 | 60 × 5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
