Ditch Cover Stainless Steel Grating 304 Plain Bar Custom Cross Bar Spacing

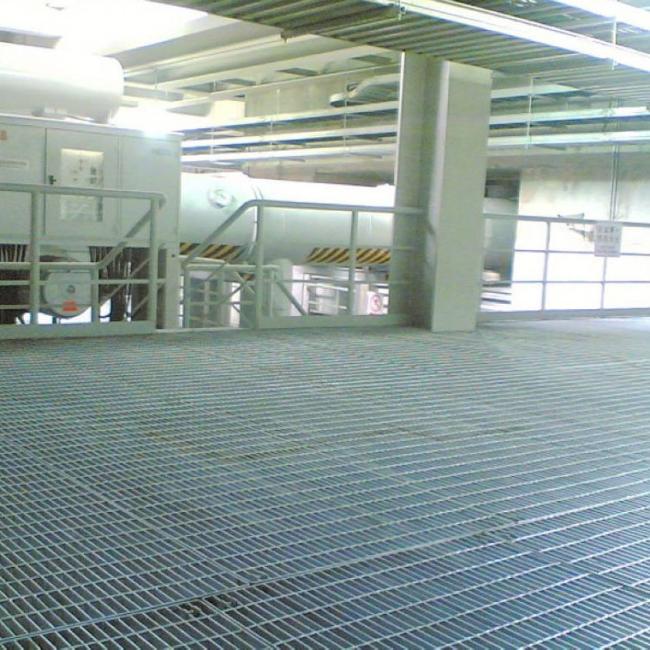

32 x 5 / 30 / 100 Stainless Steel Grating Walkway 304 Plain Bar
Gnee is hot dip galvanized processing, offers the following advantages: saving materials, saving investment, easy installation, durable in use, light structure, no accumulation of dirt, good performance of ventilation, lighting, heat dissipation, anti-corrosive, anti-acid an alkali corrosion.
The products are used in such industries as petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate,
Description
Raw material of bearing bars: stainless steel with plain type, I type or serrated type.
Raw material of cross bars: stainless steel in round bars, square bars, twisted square bars or hexagon bars.
Raw material of end bars: Same material as bearing bars.
Application
steel bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed :
- Power plant
- Chemical plant
- Oil Refinery
- Steel plant
- Machinery plant
- Paper-making factory
- Cement plant
- Civil engineering
- Wastewater treatment
- Pharmacy industry
- Food processing
Specification
| No | Item | Description |
| 1 |
Bearing bar |
25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm |
| 2 | Bear bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
| 3 | Cross bar pitch | 38,50,76,100,101.6mm |
| 4 | Material | Q235,A36,SS304 |
| 5 | Surface treatment | Black, hot dipped galvanising, paint |
| 6 | Standard | China: YB/T 4001.1-2007 |
| USA: ANSI/NAAMM(MBG531-88) | ||
| UK: BS4592-1987 | ||
| Australia: AS1657-1985 |
|
bearing bar height (mm) |
bearing bar thickness (mm) |
bearing bar pitch (mm) |
cross bar pitch (mm) |
| 65 | 5 | 20/30/40 | 50/100 |
| 60 | 5 | 20/30/40 | 50/100 |
| 55 | 5 | 20/30/40 | 50/100 |
| 50 | 3/5 | 20/30/40 | 50/100 |
| 45 | 5 | 20/30/40 | 50/100 |
| 40 | 3/5 | 20/30/40 | 50/100 |
| 35 | 3/5 | 20/30/40 | 50/100 |
| 32 | 3/5 | 20/30/40 | 50/100 |
| 25 | 3/5 | 20/30/40 | 50/100 |
| 20 | 3/5 | 20/30/40 | 50/100 |
Feature Advantage
Light weight, great load-bearing capacity, non-slip and safe, easy installation, material-economic, sturdy and durable, ventilated, easy to clean and attractive appearance.
Pictures
