T4 T5 Galvanized Steel Stair Treads With Checkered Plate For Industry Floor

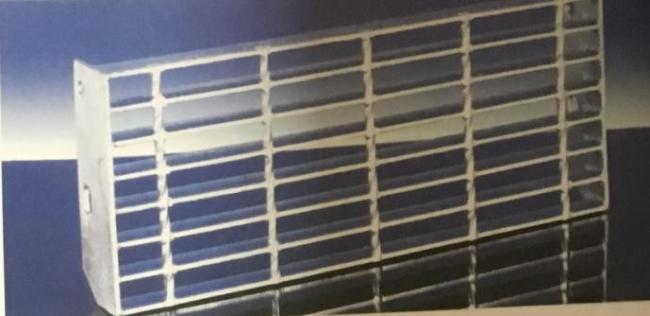

hot dipped galvanized steel grating used for stair tread
Description
Stair tread is made of steel grating& widely used for different types ofsteel ladders,feature easy installation,strong structure&aeatheic appearance&good water permeability.We can fabricate according customer'size.
Bearing Bar
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Grating Style
Plain / Smooth, Serrated /teeth, I bar, serrated I bar

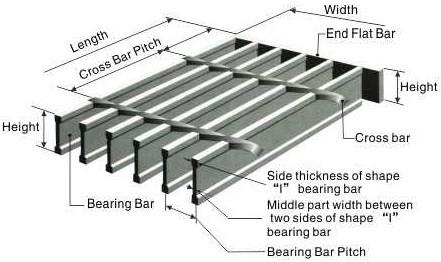

Components of steel grating

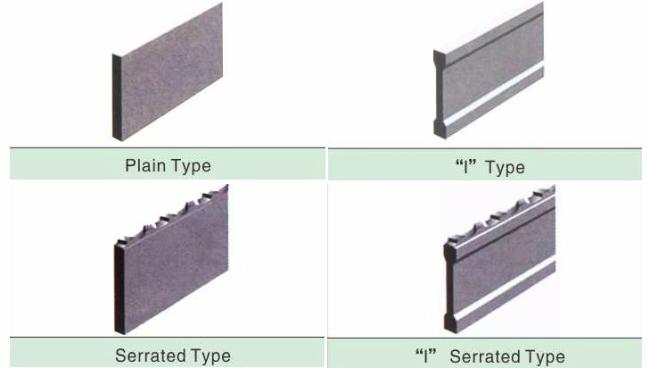

Four types of bearing bar
|
Product Name
|
Galvanized steel stair treads
|
|
Material
|
Low carbon steel
|
|
Grade
|
CN: Q235, US: A36, UK: 43A
|
|
Standard
|
CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
|
|
Certification
|
CE, GOST, ISO9001, ISO14001, HSE
|
|
Bearing bar size
|
20X3, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8mm, etc
|
|
Bearing bar pitch
|
20,25,30,32.5,34.3,40,50,60,62,65mm
|
|
Bearing bar type
|
Plain, Serrated (tooth-like), I bar (I section), Serrated-I
|
|
Cross bar size
|
5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
|
|
Cross bar pitch
|
40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
|
|
Surface treatment
|
Black, self colour, hot dip galvanized, painted, spray coating
|
|
Galvanization Standard
|
CN: GB/T13912, US: ASTM (A123), UK: BS729
|
|
Color
|
Silver
|
|
Application
|
power plants, shipbuilding, large equipment, industrial constructions
|
Type of Bar

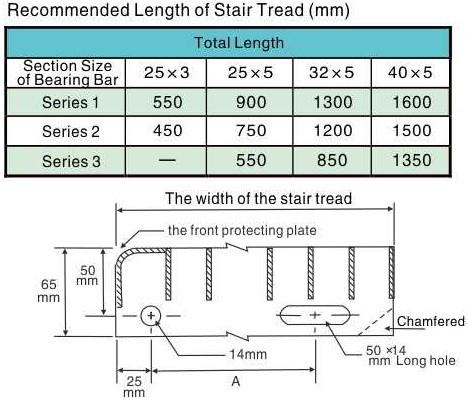

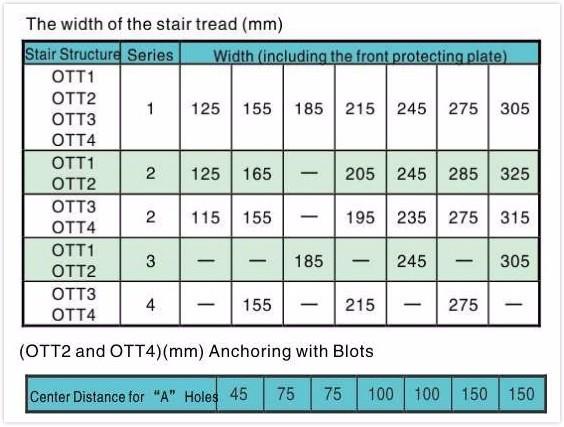

Type of stair tread

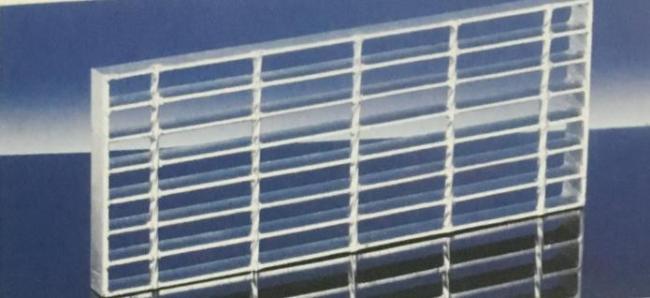

No nosing Welded fixing

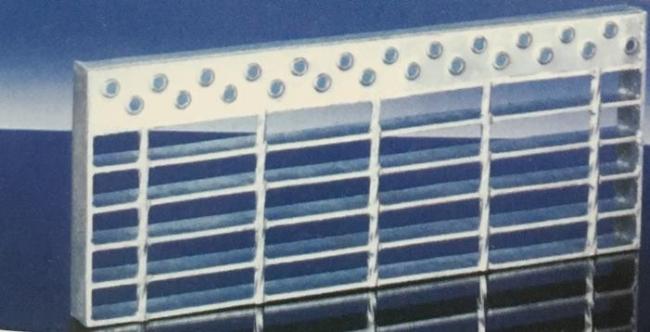

No nosing Bolted fixing

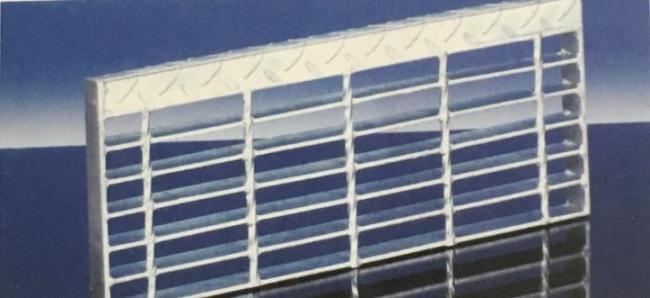

Checkered plate nosing welded fixing

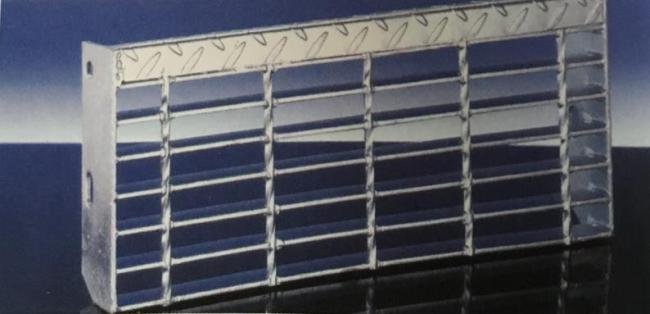

Checkered plate nosing Bolted fixing

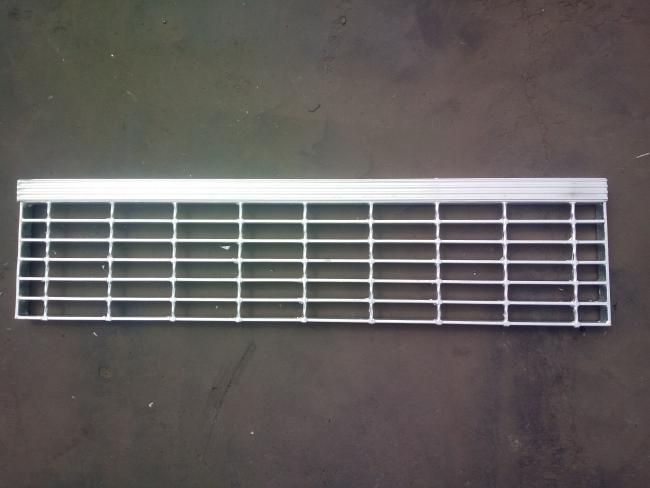

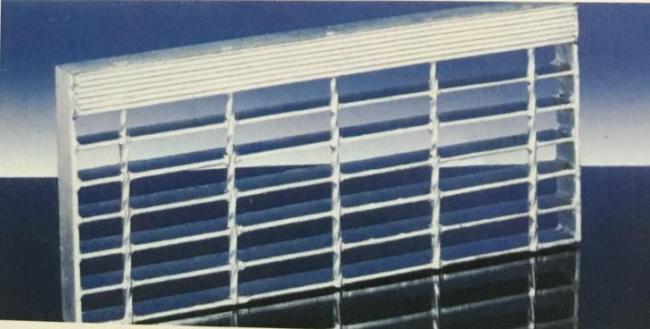

Vertical striped plate nosing Welded fixing

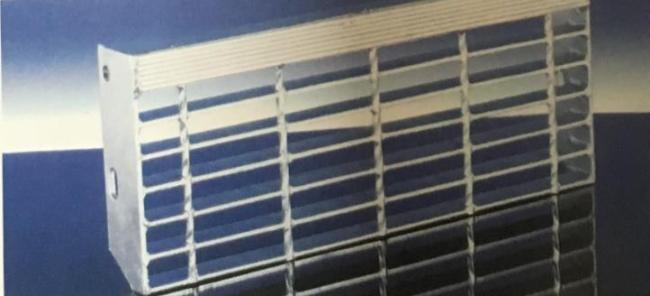

Vertical striped plate nosing Bolted fixing
Vertical striped plate nosing Welded fixing
Vertical striped plate nosing Bolted fixing

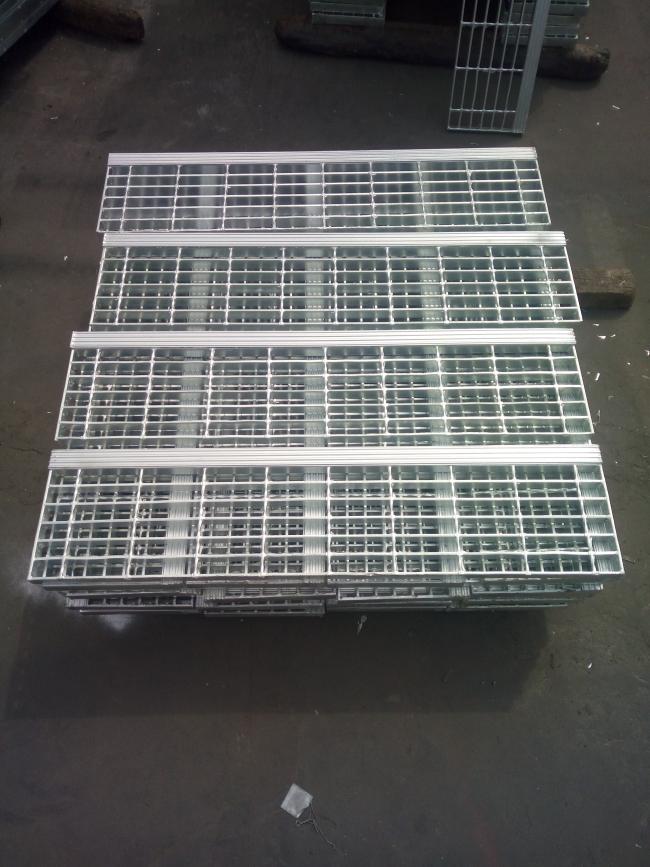

T5 Packing
Features for grille stair tread:
1. Easy for assembly and disassembly.
2. Good ventilation of air and light, heat dissipation.
3. Anti-slip & anti-explosion.
4. Easy for maintenance.
5. The aiti-slip treads possess unmatched slip resistance property, which are suitable for using in wet and slippery places like the offshore oil production platform.
6. The HDG surface provide strong antirust capacity with service life upto 30 years without any maintenance.
7. High drainage rate.
Application
It can be used in factory platform,walkway ,and other places.
