Anti Slipping Expanded Metal Mesh Low Carbon Steel Material 4.5mm - 100mm LWM

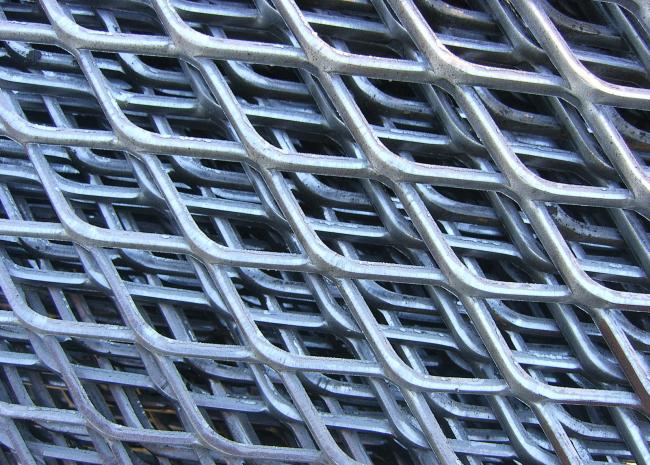

Hot Dipped Galvanized Expanded Metal Sheet Low Carbon Steel
1. Description
Material:
Low carbon steel, stainless steel plate, iron plate, copper plate, aluminum plate, titanium plate, nickel plate
Classification:
standard expanded metal ,flatten metal,heavy expanded metal,mini expanded metal,tortorise-shaped expanded metal
Surfacing Treatment:
hot-dip galvanizing,electroplating,plasticated,etc
weaving and characters:
Made of steel plate after stamping, stretching; Divided into steel plate mesh and stainless steel net; Beautiful and easy, strong and durable.
specification of expanded metal mesh:
SWD:Diamond shaped hole diagonal short length.
LWD:Diamond shaped hole the length of the diagonal length.
Strand:Steel plate mesh diamond hole edge Terrier is making a wide wire stem length of the metal plate.
Bond:Two wire connection.
Thickness:The original sheet thickness.
2. Application
- Architectural
- Partitions
- Fencing
- Screens
- Furniture
- Security Partitions
- Grilles & Vents
- Stairs
- Infill panels
- Store Fixtures
3. Specification
| Specification of Expanded Metal Mesh | ||||||
| Sheet Thickness | Opening in Width mm |
Opening in Length mm |
Stem | Roll Width mm |
Roll Length mm |
Weight kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
| Diamond Mesh Lath Weight per Square Yard | ||||
| Type | Finish | Sheet size | Pieces per bundle | Square Yards Per Bundle |
| 1.75Ibs | Galvanized | 27”X96” | 10 | 20 |
| 2.5Ibs | Galvanized | 27”X96” | 10 | 20 |
| 1.75Ibs | Galvanized | 27”X96” | 10 | 20 |
| 50 bundles per pallet equals 1,000 square yards | ||||
4. Feature Advantage
1). FLS Expanded Metal Mesh allows for excellent keying and support as a back- stop for plaster with easy fastening to cold-formed steel supports.
2). Wafer head screws are power driven to allow quick and easy attachment of Diamond Mesh Lath to framing members.
3). Expanded Metal Mesh can be cut to size with hand tools.
5. Competitive Advantage
1)High quality,competitive price and perfect service
2)Different standard of your choice
3)Products have passed international standard
4)Our company specialized in producing various kind of wire mesh
6. Products pictures
