Acid Pickling 316 Stainless Steel Grating Walkway 25 X 5 Plain Bar
Price:
Negotiable
MOQ:
2pcs
Delivery Time:
10days
Brand:
GNEE
Product Description
Acid Pickling 316 Stainless Steel Grating Walkway Plain Bar
1. Manufacturer
- With a commitment to continuous improvement in our safety and quality standards,Anping Bao Sheng leads the industry.
- With 10 Auto- Press Welding Lines and 12 Auto - Cutting Machine ,Daily Output :180 tons
- About Hot dip galvanized process , normally ,hot dip galvanized will be processed after finish edge banding ,the weight of averafed zinc layer will not be less than 500g/m2- 610g/m2 . Galvanized is standard ,subject to the standard of GB/T13912-92 , ASTM 123- USA, BS729- UK , AS1650- Australia
- Paramount to all of our product designs is safety
- We are ISO 9001:2008 certified
2. Description
Raw material of bearing bars: stainless steel with plain type, I type or serrated type.
Raw material of cross bars: stainless steel in round bars, square bars, twisted square bars or hexagon bars.
Raw material of end bars: Same material as bearing bars.
3. Application
Stair Tread Grating
- Stair treads with checker plate nosings are cost effective, durable and self-cleaning.
- The checker plate nosing insures maximum visibility and underfoot safety where needed most.
- Kinds of stair treads type
Trench Cover
- Kinds of trench cover ,like round , rectangular ,etc
- With framework or not
Platform Steel Grating
- Application of sidewalk , floor walkway , car park , industry platform etc
- Heavy Duty steel grating ,light weight steel grating etc
4. Specification
|
bearing bar height (mm) |
bearing bar thickness (mm) |
bearing bar pitch (mm) |
cross bar pitch (mm) |
| 65 | 5 | 20/30/40 | 50/100 |
| 60 | 5 | 20/30/40 | 50/100 |
| 55 | 5 | 20/30/40 | 50/100 |
| 50 | 3/5 | 20/30/40 | 50/100 |
| 45 | 5 | 20/30/40 | 50/100 |
| 40 | 3/5 | 20/30/40 | 50/100 |
| 35 | 3/5 | 20/30/40 | 50/100 |
| 32 | 3/5 | 20/30/40 | 50/100 |
| 25 | 3/5 | 20/30/40 | 50/100 |
| 20 | 3/5 | 20/30/40 | 50/100 |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |

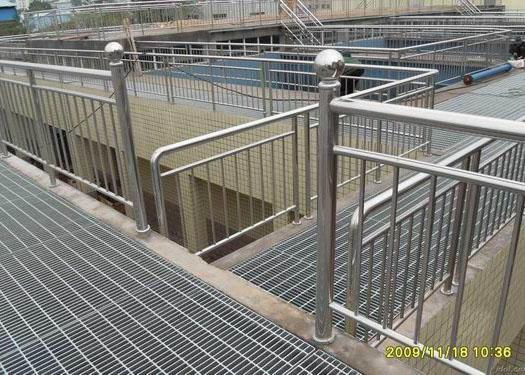

5. Pictures
