Durable Stainless Steel Bar Grating , Acid Pickling Steel Catwalk Grating
Acid Pickling 316 Stainless Steel Grating Walkway Plain Bar
1. Description
Bearing bar centers at 20mm:
This kind of fine mesh steel gratings have strong load ability and also can prevent the access of sundries of 18mm in diameter. This kind of gratings fit for pedestrian deck, walkway and ditch covers which require high security.
Bearing bar centers at 30mm:
This kind of steel grating is the most commonly used in projects with American, Australian, Japan standards are available. This kind of gratings are featured well by heavy duty, well resistance of strong impact on surface. Gratings with cross bar centers at 50mm can bear lateral impact well. This kind of steel grating fit for all kind of industrial platforms.
Bearing bar centers at 40mm:
light grating and very economical. This kind of gratings fit for fixed platforms, walkway, and stair treads and British, German,French and Japanese standards are available. The products most commonly used for Belt corridor, storage shelf,Attic panel, trestle, guardrail, sunshade gate, etc.
2. Application
Stainlesss steel walkway is widely used in the platform,corriedor,bridge,well covers,stairs,fencing for petroleum,chemical, power plant,waste treatment plant,civil engineering projects and environmental projects.
3. Specification
| No. | Item |
Description
|
| 1 | Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
|
| 2 | Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
|
| 3 | Twisted Cross Bar Pitch |
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
|
| 4 | Material Grade |
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
|
| 5 | Surface Treatment |
Black, self colour, hot dip galvanized, painted, spray coating
|
| 6 | Grating Style |
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
|
| 7 | Standard |
China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |

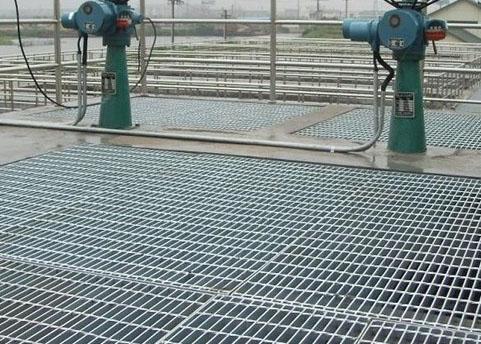

5. Pictures
