Anti Slip Galvanized Steel Grating ISO SGS Certificate 100mm Cross Bar Pitch

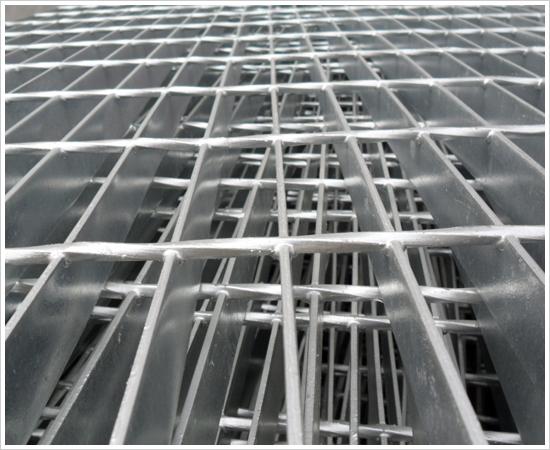

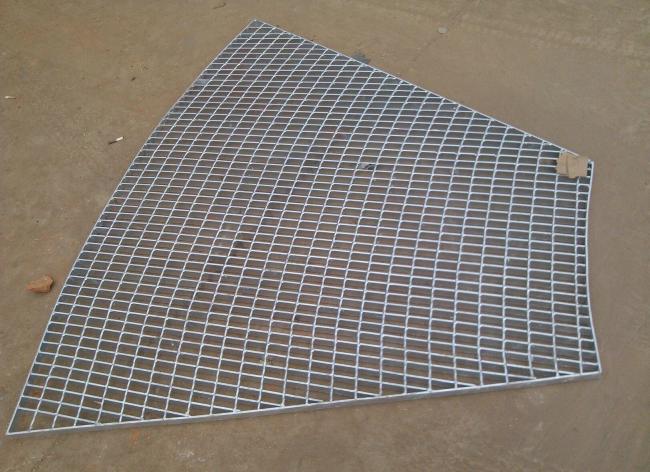

Heavy Duty Anti Slip Welded Steel Gratings With ISO SGS Certificate
Description:
Steel Grating is the workhorse of the industrial flooring market and has served industry for decades. Strong and durable with an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration.The high percentage of open area makes bar grating practically maintenance-free and all products are fully recyclable.
Grating Standardizations:
| Countries | National Standards for Grating | Materials | Galvanizing Standards |
| China | YB/T 4001.1-2007 | GB 700-88 | GB/T13912-2002 |
| America | ANSI/NAAMM(MBG531-00) | ASTM(A36) | ASTM(A123) |
| Britain | BS4592-1995 | BS4360(43A ) | BS729 |
| Australia | AS1657-1992 | AS3679 | AS1650 |
1. Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2. Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
3. Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
4. Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing
5. Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS
Common specifications:
|
roduct Name
|
Steel grating
|
|
Material
|
Low carbon steel / Stainless steel
|
|
Grade
|
CN: Q235, Q345, USA: A36, UK: 43A
|
|
Standard
|
CN: YB/T4001-1998, USA: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
|
|
Certification
|
CE, GOST, ISO9001, ISO14001, HSE
|
|
Bearing bar size
|
20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
|
|
Bearing bar pitch
|
20,25,30,32.5,34.3,40,50,60,62,65mm
|
|
Bearing bar type
|
Plain, Serrated (tooth-like), I bar (I section), Serrated-I
|
|
Cross bar size
|
5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
|
|
Cross bar pitch
|
40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
|
|
Panel size
|
3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,6400x1000, as request
|
|
Surface treatment
|
Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.
|
|
Galvanization Standard
|
CN: GB/T13912, USA: ASTM (A123), UK: BS729
|
|
Color
|
Silver/Black
|
|
Application
|
petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing
|
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment, 30% T/T in advance ,balance before shippment.
