Twisted Bar Stainless Steel Floor Grating , ISO9001 Industrial Floor Grates
Price:
Negotiable
MOQ:
2pcs
Delivery Time:
10days
Product Description
Acid Pickling 316 Stainless Steel Grating Walkway Plain Bar
1. Manufacturer
- With a commitment to continuous improvement in our safety and quality standards,Anping Bao Sheng leads the industry.
- With 10 Auto- Press Welding Lines and 12 Auto - Cutting Machine ,Daily Output :180 tons
- About Hot dip galvanized process , normally ,hot dip galvanized will be processed after finish edge banding ,the weight of averafed zinc layer will not be less than 500g/m2- 610g/m2 . Galvanized is standard ,subject to the standard of GB/T13912-92 , ASTM 123- USA, BS729- UK , AS1650- Australia
- Paramount to all of our product designs is safety
- We are ISO 9001:2008 certified
2. Description
| Countries | Steel Grating Standard | Steel Grade Standard | Hot Dip Galvanizing Standard |
| China | YB/T 4001.1-2007 | GB 700-88 | GB/T13912-2002 |
| America | ANSI/NAAMM(MBG531-00) | ASTM(A36) | ASTM(A123) |
| Britain | BS4592-2005 | BS4360(43A ) | BS729 |
3. Application
Trench Cover
- Kinds of trench cover ,like round , rectangular ,etc
- With framework or not
Platform Steel Grating
- Application of sidewalk , floor walkway , car park , industry platform etc
- Heavy Duty steel grating ,light weight steel grating etc
4. Specification
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
| Bearing Bars | Cross Bars | Type 19-W-4 | Type 19-W-2 | Type 15-W-4 | Type 15-W-2 |
| 3/4 x 1/8 | 1/4 | 3.99 | 4.63 | 4.95 | 5.59 |
| 3/4 x 316 | 1/4 | 5.67 | 6.31 | 7.11 | 7.75 |
| 1 x 1/8 | 1/4 | 5.15 | 5.79 | 6.44 | 7.08 |
| 1 x 3/16 | 1/4 | 7.35 | 7.99 | 9.27 | 9.91 |
| 1-1/4 x 1/8 | 1/4 | 6.20 | 6.84 | 7.79 | 8.43 |
| 1-1/4 x 3/16 | 1/4 | 9.03 | 9.67 | 11.43 | 12.07 |
| 1-1/2 x 1/8 | 1/4 | 7.35 | 7.99 | 9.27 | 9.91 |
| 1-1/2 x 3/16 | 5/16 | 10.94 | 11.80 | 13.82 | 14.68 |
| 1-3/4 x 3/16 | 5/16 | 12.62 | 13.48 | 15.98 | 16.84 |
| 2 x 3/16 | 5/16 | 14.30 | 15.16 | 18.14 | 19.00 |
| 2-1/4 x 3/16 | 5/16 | 15.87 | 16.74 | 20.16 | 21.03 |

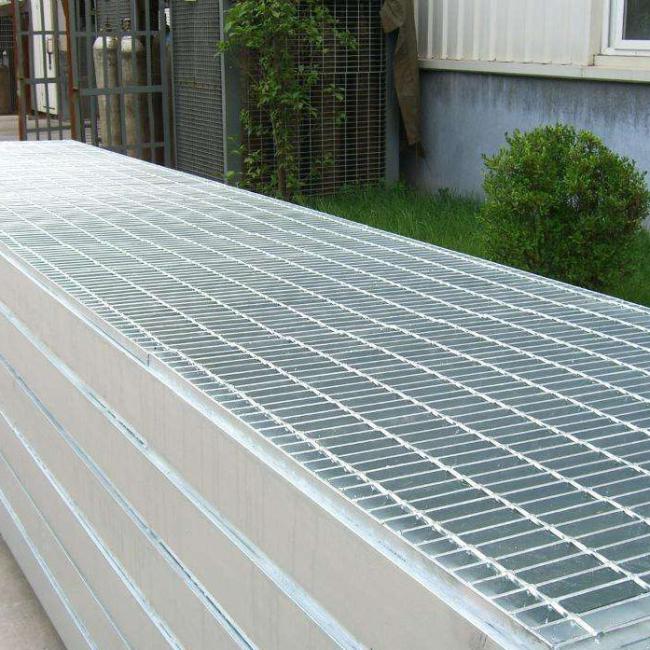

5. Pictures
