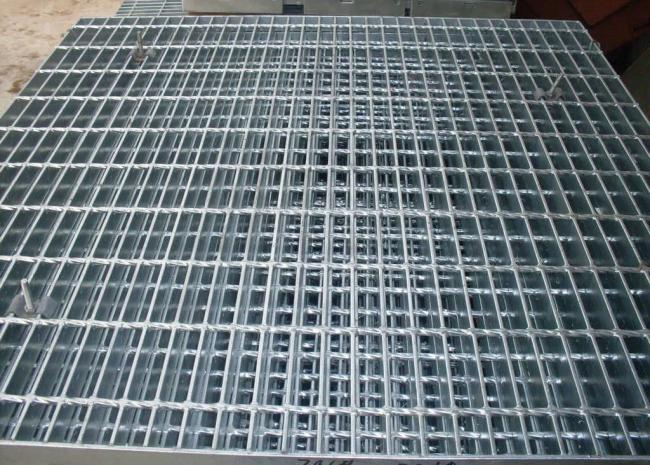

Mild Steel Platform Steel Grating Hot Dipped Galvanized Bar Grating 25mm X 5mm

Price Negotiable

MOQ: 2pcs

Delivery Time: Shipped in 20 days after payment

Brand: Gnee

Product Description

Mild Steel Platform Steel Grating Galvanzied Bearing Bar 25mm x 5mm

1. Material:

Q235 or Stainless Steel

2. Sign of the shape of bearing bars.
F- Plain style
S- Serrated style

I- I-section style

3. Sign of surface treatment
G- Hot galvanizing (it is recommended)
P- Painted
U- untreated

4. Steel Grating Application :

steel bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed

6. Plain Type Steel Bar Grating

Its bearing bar is plain surface
Simplicity in design is surpassed by its versatility in usage.From mezzanines, platforms, catwalks, and stairs to fences, benches, racking shelves, and ventilation covers

Serrated Type Steel Bar Grating

Its bearing bar is serrated surface
For applications where extremely slippery conditions prevail,Serrated steel grating weld offers a superior grip surface to the load bearing bars.

7. Steel Grating Application :

steel bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed

No.	Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc.
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan:JIS
8	Application	-Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships; -Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street; -Platforms for oil extraction sites, car washing sites and air towers; -Fencings for car-parks, buildings and roads; drainage trench covers and drainage pit covers for high strength .
