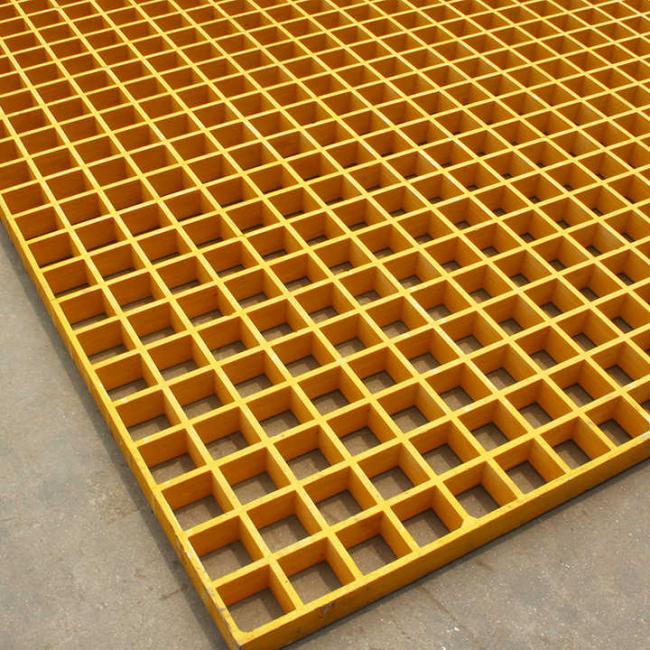

Car Washes fibreglass Walkway Mesh , Easy Cleaning Fiberglass Drain Grates
38 × 38 × 38 , 50 × 50 × 50 Frp Grating Colorful Surface Floor Grating
Specification
Regularly Moulded GRP Gratings have a polyester resin matrix. Glass content is approximately 35%.
Standard colours are green, yellow or grey, other colours are available according to RAL.
FRP grating is widely used in operation platform, checking and repairing walkway, drilling
platform, terrace, stair step, equipment walkway, trench cover, pedestrian overpass, filler support, deck of
ship,falsework, ventilation fence, rail, corrosion resistance shelf,etc.
| Place of Origin: |
Hebei, China (Mainland)
|
Brand Name: |
BS
|
Model Number: |
FRP
|
| Application: |
Platform, Floor,trench cover,stairs
|
Surface Treatment: |
Smooth
|
Technique: |
Molded
|
| Dimensions: |
38*38*38
|
Product name: |
frp molded grating
|
Color: |
Blackgraywhiteyellowredgreen
|
| Material: |
Fiberglass Reinforced Plastic
|
Common Specification: |
38x38x38
|
Thickness: |
38MM
|
| Feature: |
Good
|
Hole shape: |
Square
|
Length: |
1007x4007,1207x4047,etc
|
Details
| Item no. | Height(mm) | Mesh Size (mm) |
Standard Panel Sizes(mm) | Bar Thickness (top/bottom-mm) |
Open Area | Weight (kg/m2) |
| 1 | 13 | 50.8×50.8 | 3660×1220 | 6.4 / 5.4 | 76% | 5.5 |
| 2 | 15 | 25.4×25.4 / 50.8×50.8 | 3660×1220 | 6.2 / 5 | 57% | 7.2 |
| 3 | 15 | 38.1×38.1 | 3660×1225 | 6.3 / 5.2 | 69 | 6.5 |
| 4 | 15 | 20×20 / 40×40 | 4047×1247 | 6.35 / 5.3 | 47 | 11.5 |
| 5 | 20 | 38.1×38.1 | 3665×1225 | 6.3 / 5 | 69 | 9.3 |
| 6 | 20 | 12.8×12.8×12.8 / 38.5×38.5 | 3434×970 | 7.2 / 6.4 | 27 | 18.5 |
| 7 | 25 | 38.1×38.1 | 3665×1225 | 6.35 / 5 | 69 | 12.3 |
| 8 | 25 | 40×40 | 4047×1007 | 6.35 / 5 | 70 | 12.2 |
| 9 | 25 | 19×19 / 38×38 | 4005×1220 | 6.4 / 5 | 44 | 15.5 |
| 10 | 25 | 25×100(Bearing bars to run width direction) | 3007×1009 | 9.4 / 8(length) 6.4 / 5(width) |
67 | 13.8 |
| 11 | 25 | 25.4×101.6(Bearing bars to run width direction) | 3660×1220 | 7 / 5 | 67 | 13 |
| 12 | 25 | 101.6×25.4(Bearing bars to run length direction) | 3665×1225 | 7 / 5 | 67 | 13.1 |
| 13 | 30 | 38.1×38.1 | 4008×1525 | 6.6 / 5 | 68 | 14.6 |
| 14 | 30 | 40×40 | 4047×1007 | 6.6 / 5 | 69 | 14.2 |
| 15 | 30 | 20×20 / 40×40 | 4047×1247 | 7 / 5 | 42 | 18.1 |
| 16 | 30 | 12.7×12.7×12.7 / 38×38 | 4040×1220 | 7 / 5 | 30 | 23.5 |
| 17 | 30 | 26×26 / 52×52 | 4011×1150 | 6.5/5 | 56 | 13.6 |
| 18 | 38 | 38.1×38.1 | 3969×1525 | 7 / 5 | 66 | 19.2 |
| 19 | 38 | 40×40 | 4047×1007 | 7 / 5 | 67 | 18.8 |
| 20 | 38 | 152.4×25.4(Bearing bars to run length direction) | 3665×1226 | 7 / 5(length) 9 / 7(width) |
68 | 20.4 |
| 21 | 38 | 101.6×38.1(Bearing bars to run length direction) | 3660×1220 | 7 / 5 | 76 | 14.5 |
| 22 | 38 | 19×19 / 38.1×38.1 | 4045×1220 | 7 / 5 | 40 | 23.5 |
| 23 | 38 | 20×20 / 40×40 | 4047×1247 | 7 / 5 | 42 | 22 |
| 24 | 40 | 40×40 | 4047×1247 | 7 / 5 | 67 | 20 |
| 25 | 40 | 220×60 | 2207×1507 | 7 / 5 | 85 | 9.5 |
| 26 | 40 | 20×20 / 40×40 | 4047×1207 | 7 / 5 | 42 | 23.7 |
| 27 | 50 | 50.7×50.7 | 3660×1225 | 8.3 / 5 | 69 | 21.5 |
| 28 | 50 | 50.7×50.7 | 3660×1225 | 8.8 / 5 | 68% | 23.5 |
Application
1 Walkways
2 Platforms
3 Protective Shielding
4 Machinery Housings
5 Car Washes
6 Drains
Characteristics :
1. Corrosion and chemical resistant
2. High strength-to-weight ratio
3. Ergonomic
5. Slip-resistant
6. Anti-aging
7. Easy maintenance
