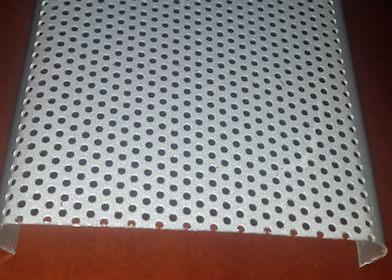

Sliver Galvanized Perforated Metal Mesh ISO9001 Approval 2mm Round Hole
Staggered Centers Round Hole Perforated Metal Mesh 41 % Open Area Sliver Galvanized Anping
Perforated Metal is broadly used in Industrial and Architectural applications such as; oil filters,
grain sifters, sound isolation and ventilation.
The round hole perforation is the most popular type of perforated pattern. We can cut to size to
your specific requirements.
Perforated metal is descibed by the hole size and the pitch. The pitch is the distance from the
centre of one hole to the centre of the adjacent holes. All our perforated sheets are on a
triangular pitch.
Perforated sheets are very useful for guarding and ballustrading where a strong smooth finish is
required with a small apeture.
1. Perforated metal material:
Stainless steel plate, steel plate, copper plate, aluminum plate, nickel plate, Al-Mg plate
2. Perforated metal surface treatment:
Electro galvanized, hot-dipped
3. Specifications
| term | Cable Diameter (mm) | Cable NO. | Cable Pitch (mm) | Rod Diameter (mm) | Rod Pitch (mm) | Weight (kg/m2) |
| KC-311 | 3 | 3 | 40 | 3 | 11 | 9.5 |
| KC-415 | 2.75 | 2 | 40 | 4 | 15 | 9.41 |
| KC-36 | 2 | 4 | 50 | 3 | 6 | 11.56 |
| KC-310 | 2 | 3 | 80 | 3 | 10 | 6.6 |
| KC-153 | 1.75 | 4 | 26.4 | 1.5 | 3 | 5.3 |
| KC-47 | 1.05 | 2 | 36 | 4 | 7 | 14.9 |
| KC-24 | 1 | 4 | 36 | 2 | 4 | 7 |
| KC-082 | 0.6 | 2 | 5.5 | 0.8 | 2 | 3.1 |
| KC-0516 | 0.45 | 3 | 3.5 | 0.5 | 1.6 | 2.1 |
| 5/32" | 3.97mm |
3/16" |
0.027-0.066" |
0.68-1.68mm |
63.00% |
|||
3/16" |
4.76mm |
¼" |
0.027-0.127" |
0.68-3.23mm |
50.00% |
|||
1/4" |
6.35mm |
3/8" |
0.033-0.111", 0.25" |
0.84-2.82mm, 6.35mm |
40.00% |
|||
3/8" |
9.52mm |
½" |
0.053-0.082", 3/16" |
1.35-2.08mm, 4.76mm |
51.00% |
|||
3/8" |
9.52mm |
9/16" |
0.059", 0.119" |
1.50mm, 3.02mm |
40.00% |
|||
1/2" |
12.70mm |
11/16" |
0.033-0.127", 3/16" |
0.84-3.23mm, 4.76mm |
48.00% |
|||
1/4" Hex |
6.35mm Hex |
0.285 |
0.027-0.033 |
0.68-0.84mm |
76.00% |
|||
4. Perforated metal hole pattern:
Round hole, square hole. Slot hole round ends, slot hole, triangle hole, hexagonal hole, scale hole. Rectangular hole, Cross, Diamond
Round hole: Plate thickness 0.4-6.0mm
Hole size: 1.0-25mm
Center to center distance: 3-34mm
Opening rate: 23%-49%
Square holes: Plate thickness 0.8-3.0mm
Hole size 3.0-50.0mm
Center to center distance: 5.0-100.0mm
Opening rate: 16%-64%
Slot holes round ends: Plate thickness: 0.5-3.0mm
Hole size: 1.0x1.0mm - 10 x 45mm
Center to center distance: 4.0 X6.0 - 20 x 60mm
Opening rate: 18%-76%
5. Pictures
