Flooring Steel Grating Clips Type A B C Optional Hot Dip Galvanized Surface
Flooring Steel GratingPlatform Galvanized Steel Grating clips

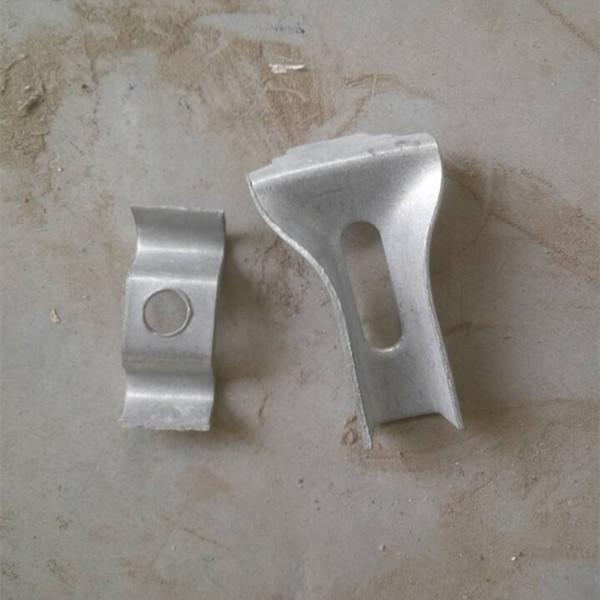

The clip apply to all kinds of steel gratings, it is made of the M8 bolt, top clip and bottom clip.
The method of clip fixing: There are at least 4 clips on every piece of steel grating, about the big span steel grating it is better to use more clips.
According to the client's requests, we can supply galvanized mild steel clips and stainless steel clips.
Material : mild steel
Surface Treatment : hot dip Galvanized
Competitive price and good quality !!
We are Professional factory for grating clips ,
we have stamping machines from 6.3tons to 125tones ,
now we can do stamping processing , welding processing , bending processing ,
and all kinds of the surface treatment(powder coated , zinc plated , hot dip Galvanized ,
and so on .
Clips for the below table

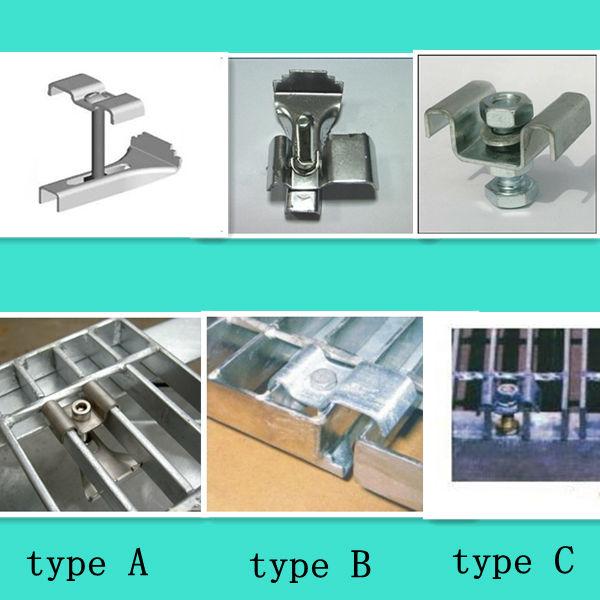

Type A - composed of a top board with double hook,a holding down plate with teeth and an M10 (or M8) inner-hexagon-bolt.
Type B - composed of a top board with double hook(where one hook can draw together two neighboring steel gratings),a holding down plate with teeth and a M10(or M8) inner-hexagon-bolt.
Type C - composed of a top board with double hook and a M10 (or M8) hexagon-bolt which can be welded in the supporting structure
| Type | Plain / Smooth, Serrated /teeth, I bar, serrated-I bar |
| Steel flat size | 20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……120×10mm,etc. |
| Bearing bar pitch | 12.5,15,20,25,30,35,40,50mm |
| Cross bar pitch | 38,50,80,100mm |
| material | Low carbon steel, stainless steel, aluminum alloy |
| Surface treatment | Untreated, hot galvanized, painting,electro galvanized |
|
Grating Standard |
China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS 4592-1987 Australia: AS 1657-1985 |
|
Material standard |
China: GB 700-88 UK: BS 4360:1990 USA: ASTM A36/A36M-96 AUSTRALIA: AS 3679 |
|
HDG standard |
CHINA: GB/T13912-2002 UK: BS729 USA: ASTM A123/A123M-97a AUSTRALIA: AS 1650 |
We can provide the following services:
| Mold Design: | We use the most advanced mould design software Auto CAD, Solidworks, UG (dwg) |
| Manufacture: | We use advanced technology, unmatched skill, professional equipment size range from 25T-250T, and experienced technicians to fit our customers requirements, like tooling manufacturing, stamping, welding, and surface coating service |
| Material: | Carbon steel, stainless steel, alloy steel, aluminum, brass, etc |
| Thickness of the raw materials: | We can manufacture sheet metal products in thickness starting from 0.2-30mm |
| Making process: | Progression die, Stamping, Deep drawing, Bending, Punching, Threading, Welding, Tapping, Riveting, Grinding |
| Surface coating: | Plating(zinc, nickel, chrome), electrophoresis, painting, electrostatic spraying, hot dip galvanized, dacromet coating, anodic oxidation, blacking, polishing, coated with anti-rust oil |
| Price terms: | FOB Tianjin Port, China |
| Lead time: | 25-50 days based on the different products |
