Serrated Steel Grid Mesh Flooring , Sliding Resistance Steel Platform Grating

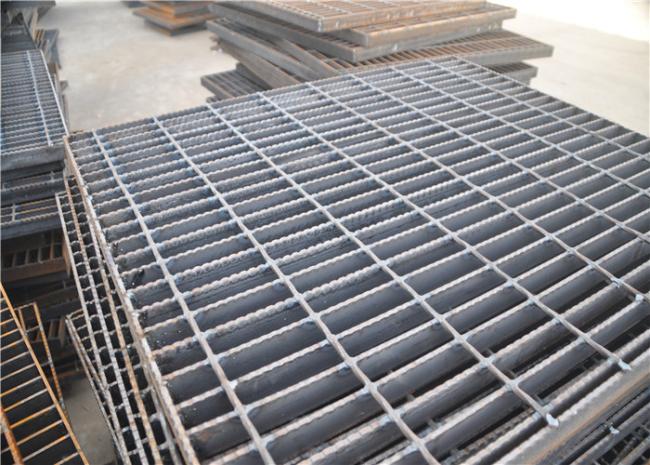

Serrated Type Galvanized Steel Bar Sliding Resistance Grating Platform
Detail description
Its bearing bar is serrated surface
For applications where extremely slippery conditions prevail,Serrated steel grating weld offers a superior grip surface to the load bearing bars.
| Type | Serrated type |
| Standard | 1.China: YB/T4001-1998; 2.USA:ANSI/NAAMM(MBG531-88) 3.UK:BS4592-1987 4.Australia:AS1657-1985; 5.Japan:JIS |
| Material | Q235,A36,SS304 |
| Bearing bar | 1.plain&serrated type:20x3 to 100x3mm 2.I-section type:(25,32,38,40,50)x5x3; (50,55,60,65,70,75)x7x4,etc |
| Surface treatment | untreated, painting or hot dip galvanizing |
| Grating type | 1.Plain style steel grating; 2.serrated style steel grating; 3.I bar type steel grating. |
| Application Fields |
1.steel structure platforms; 4.well covers. |
| Advantages | 1.Low cost for molding or tooling; 2.Advanced &standardization workshops and facilitates; 3.High-tech and high precision manufacturing equipment; 4.Strict ISO 14001:2004,ISO9001:2008 standards; 5.ROHS compliant & environment friendly products; 6.Professional technical specialists and management personnel; 7.100%in house inspection before delivery; 8.All OEM/EDM is acceptable. |
| Item No | Bearing bar pitch | Cross bar pitch | specification os bearing bar(width*thickness) | |||||
| 20*3 | 25*3 | 32*3 | 40*3 | 20*5 | 25*5 | |||
| 1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
| 2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
| 3 | 60 | 50 | G203/60/50 | G253/60/50 | G323/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
Features
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.
Our advantages
1. Our company produce various specifications,models as per standards
2. Using high -quality material and advanced production technology and equipment for processing
3. Applicable to a humid climate and the harsh corrosive enviroment
4. Products has been exported to Europe,North American,the Middle East,South East
Asia,Africa,Asia,European,other countries and regions
