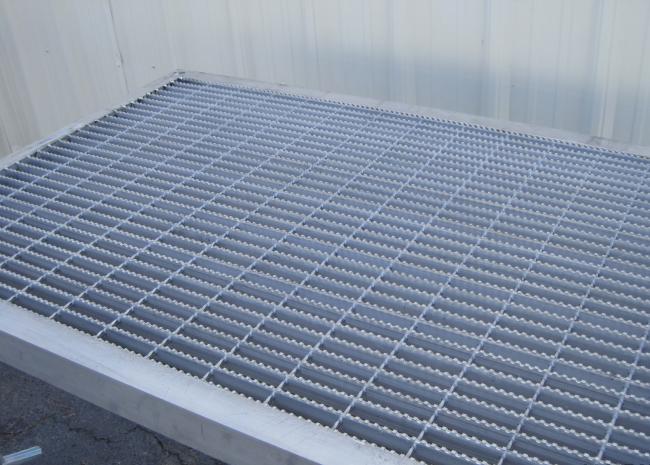

Zinc Coating Welding Serrated Steel Grating For Outdoor Stair Tread
Zinc coating welding serrated steel gi grating outdoor stair treads

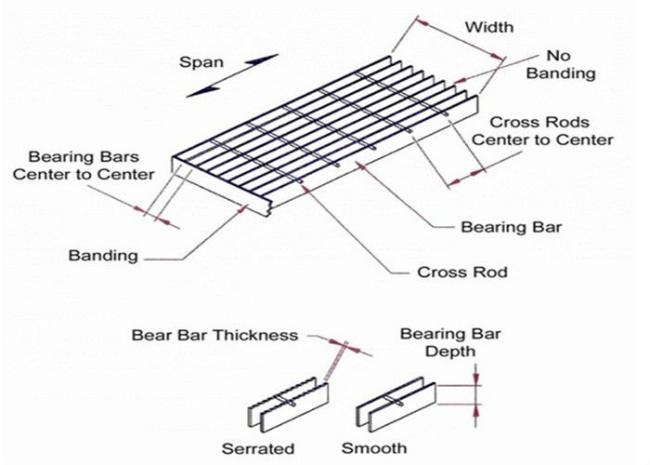

1. what is steel grating ?( galvanized I bar grating ) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.
steel grating specification- galvanized serrated I bar grating
panel size available(black grating): 1000x5800mm or 1000x6000mm or 7315mm*1m
| Bearing bar pitch | Cross bar pitch | load steel size ( Width ×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch | Cross bar pitch | load steel size (Width ×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
steel grating application
power station platform grating
port platform floor grating
spray booth floor grating
car parking STEEL GRATING FOR CAR PARK LINEAR DRAINAGE channel grating
steel stair treads grating
trench cover grating
car washing station/ car parking lot
FAQ
1. What is the application of steel grating?
The main usage can be divided to 4 kinds: platform, flooring, stair treads and drainage cover.
See the above pic for reference.
2. what is the quantity of galvanization? And how long will it last?
We do our galvanization as American standard, for over 5mm thick steel grating, it is no less than
610g per square meter , for less than 5 mm thick steel grating, it is no less than 460g per square meter usually it is 60-80μ per square meter. And it can last at least 50 years.
3. Which standard can your products meet?
We can produce as customer's need. Here are most popular standard:
China: YB/T4001.1-2007
UK: BS4592-1-1995
USA: ANSI/NAAMM(MBG531-88)
Australia: AS1657-1985
4. Do you provide design?
Yes, we can provide CAD design for customers, as long as you can tell us your requirements.
