Light Duty Steel Grating / Heavy Duty Bar Grating 1-1/4" x 1/4" To 6" x 1/2"
Light Duty Heavy Duty Steel Grating 1-1/4" x 1/4" To 6" x 1/2"

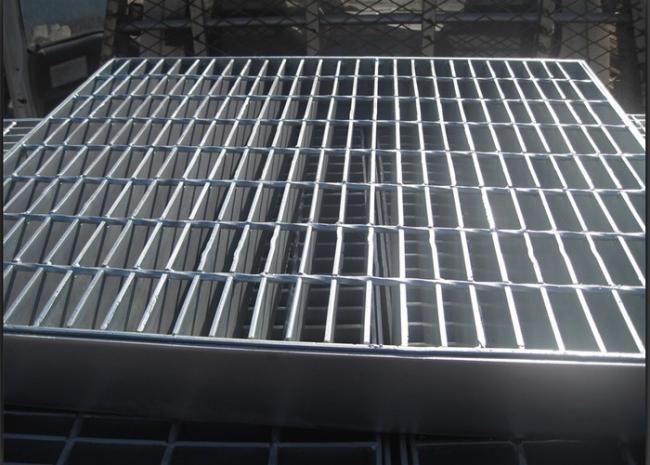

Carbon Steel bar grating is a nice choice when your project requires a strong material and you are not going to expose the metal grating to an expressly corrosive environment. Choose from plain or serrated bar grating surfaces, galvanized, bare steel or painted finshes. Bar grating is available as Light or Heavy Duty Welded grating. Great for industrial steel flooring and metal grates.
Heavy Duty bar gratingranges in size from 1-1/4" x 1/4" to 6" x 1/2".
Light duty bar grating specification
| Bar Size Inches: | Weight Per Sq.Ft: | Sect.Prop.Ft. Of Width: |
| 3/4x3/16 | 5.67 | Sx=0.194/1x=0.73 |
| 1x1/8 | 5.15 | Sx=0.228/1x=0.114 |
| 1x3/16 | 7.35 | Sx=0.344/1x=0.171 |
| 1-1/4x1/8 | 6.2 | Sx=0.358/1x=0.223 |
| 1-1/4x3/16 | 9.03 | Sx=0.536/1x=0.335 |
| 1-1/2x1/8 | 7.35 | Sx=0.515/1x=0.387 |
| 1-1/2x3/16 | 10.94 | Sx=0.773/1x=0.579 |
| 1-3/4x3/16 | 12.62 | Sx=1.052/1x=0.902 |
| 2x3/16 | 14.3 | Sx=1.375/1x=1.375 |
| 2-1/4x3/16 | 15.87 | Sx=1.740/1x=1.958 |
| 2-1/2x3/16 | 17.55 | Sx=2.148/1x=2.685 |
| Note:Sx=(Sec.Mod.Ft Width) 1x=(Mom of Inertia Ft Width) | ||
Heavy duty bar grating specification
| Bar Size Inches: | Weight Per Sq.Ft: | Sect.Prop.Ft. Of Width: |
| 1-1/4x1/4 | 12.08 | Sx=0.642/1x=0.420 |
| 1-1/4x3/8 | 17.55 | Sx=1.009/1x=0.63 |
| 1-1/2x1/4 | 14.35 | Sx=0.969/1x=0.726 |
| 1-1/2x5/16 | 17.55 | Sx=1.211/1x=0.908 |
| 1-1/2x3/8 | 20.86 | Sx=1.452/1x=1.089 |
| 1-3/4x1/4 | 16.52 | Sx=1.318/1x=1.153 |
| 1-3/4x3/8 | 24.16 | Sx=1.977/1x=1.730 |
| 2x1/4 | 17.56 | Sx=1.722/1x=1.722 |
| 2x5/16 | 23.13 | Sx=2.152/1x=2.152 |
| 2x3/8 | 27.47 | Sx=2.583/1x=2.583 |
| 2-1/4x1/4 | 20.86 | Sx=2..179/1x=2.451 |
| 2-1/4x3/8 | 30.78 | Sx=3.268/1x=3.677 |
| 2-1/2x1/4 | 23.13 | Sx=2.690 / 1x=3.362 |
| 2-1/2x5/16 | 28.61 | Sx=3.362 / 1x=4.203 |
| 2-1/2x3/8 | 34.08 | Sx=4.035 / 1x=5.044 |
| 3x1/4 | 28.89 | Sx=3.874 / 1x=5.810 |
| 3x5/16 | 35.50 | Sx=4.843 / 1x=7.263 |
| 3x3/8 | 42.11 | Sx=5.811 / 1x=8.716 |
| 3-1/2x1/4 | 33.33 | Sx=5.272 / 1x=9.226 |
| 3-1/2x3/8 | 48.62 | Sx=7.909 / 1x=13.840 |
| 4x1/4 | 37.67 | Sx=6.886 / 1x=13.772 |
| 4x5/16 | 46.45 | Sx=8.608 / 1x=17.215 |
| 4x3/8 | 55.23 | Sx=10.330 / 1x=20.660 |
| 4-1/2x1/4 | 42.11 | Sx=8.716 / 1x=19.610 |
| 4-1/2x3/8 | 61.84 | Sx=13.074 / 1x=29.416 |
| 5x1/4 | 46.45 | Sx=10.761 / 1x=26.901 |
| 5x5/16 | 57.40 | Sx=13.451 / 1x=33.626 |
| 5x3/8 | 68.46 | Sx=16.141 / 1x=40.352 |
| 5-1/2x1/4 | 50.89 | Sx=13.020 / 1x=35.804 |
| 5-1/2x3/8 | 74.69 | Sx=19.530 / 1x=53.707 |
| 6x1/4 | 55.23 | Sx=15.495 / 1x=46.485 |
| 6x5/16 | 68.46 | Sx=19.369 / 1x=58.106 |
| 6x3/8 | 81.57 | Sx=23.343 / 1x=69.127 |
| Note: Sx = (Sec. Mod. Ft Width) 1x = (Mom. of Inertia Ft. Width) | ||
How to Specify Heavy Duty Bar Grating
- Select type of grating
- “W” for Welded Steel Grating
- “WS” for Welded Stainless Steel Grating
- Select bar spacing from table above
- Select bearing bar size from Load Tables
- Specify Plain or Serrated surface
- Specify banding and any additional trim required
Specify finish
Bare steel (no finish)
Painted (red, black, silver, other)
Hot Dip Galvanized (per ASTM A-123)
