1PC Reduced Bore Stainless Steel Ball Valve 1/4" to 2" CF8 NPT Thread
1/4" to 2" CF8 NPT Thread 1PC Reduced Bore Stainless Steel Ball Valve
Description
ball valve is a valve with a spherical disc, the part of the valve which controls the flow through it. The sphere has a hole, or port, through the middle so that when the port is in line with both ends of the valve, flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked. The handle or lever will be in line with the port position letting you "see" the valve's position.
Ball valves are used extensively in industrial applications because they are very versatile, easy to repair and operate.

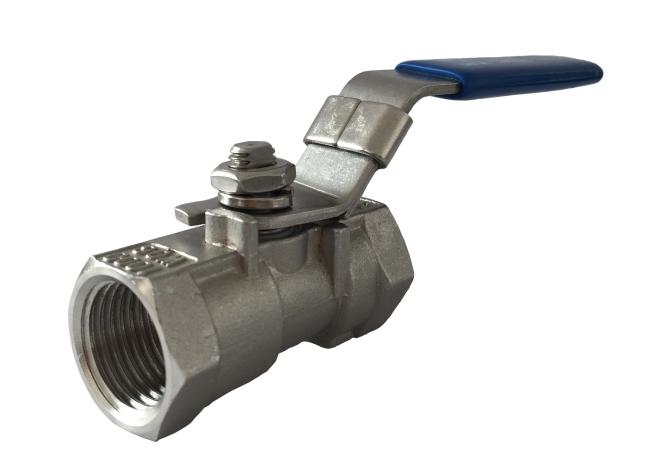

1PC Ball Valve Female Thread is reduced bore design. The body is made of investment casting and the valve is featured with blow-out-proof stem. Ball valve seat material is Reinforced Teflon (R-PTFE) for excellent chemical resistance and improved cycle life. Locking device is optional for secured operation. Suitable for isolation applications for plumbing, Industrial Plant, Food Industries, Process Equipment and Genral Industrial Plants

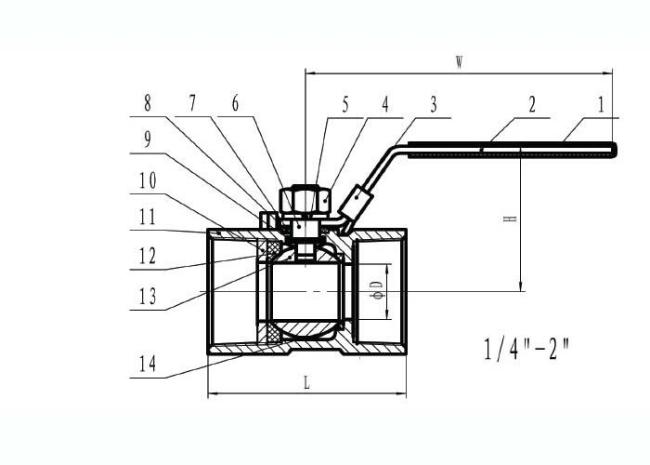

Specification Data
| Item | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" |
| D | 5 | 7 | 9.2 | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 |
| L | 39 | 44 | 57 | 59 | 71 | 78 | 83 | 100 | 128 | 153 |
| H | 33 | 35 | 40 | 44 | 51 | 57 | 64 | 70 | 70 | 77 |
| W | 68.5 | 90 | 98 | 98 | 111 | 111 | 139 | 139 | 189 | 189 |
STANDARD
Design: ANSI B 16.34
Testing Standard: API 598
APPLICATION
For General Chemical and Industrial services
Working pressure: 6.3Mpa, 1000psi
Applicable Medium: Water, oil, gas
Body Material: Stainless Steel 304, Stainless Steel 316
