1 Inch Socket Welding Npt or Bsp threaded 304 stainless steel 3 Pc 1000 Psi Ball Valve
Price:
USD 14.31-15.20 dollars
MOQ:
10
Delivery Time:
40 days
Product Description

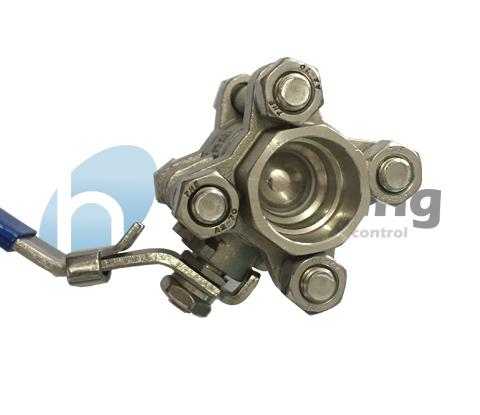

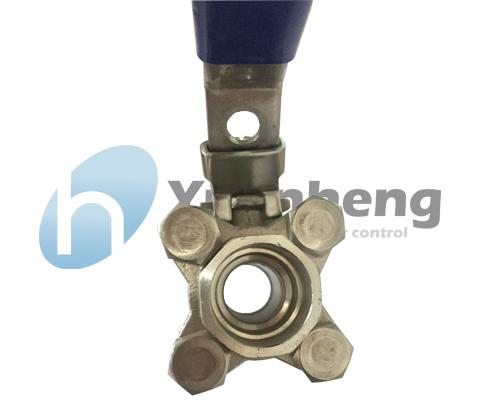

1 Inch Socket Welding 3 Pc 1000 Psi Ball Valve Npt Or Bsp
| 1 | Main material | SS304/316 |
| 2 | Working pressure | 1000 PSI |
| 3 | Working Temperature | -20-240℃ |
| 4 | Connection type | Butt welding, Thread, Socket welding |
| 5 | Certificate | ISO 9001/CE |
| 6 | Size | 1/4" to 4" |
| 7 | Thread type | NPT, BSP, BSPT |
| 8 | Bore type | Full bore |
Material and specification
| Item | ITEM | Material |
| 1 | BODY | CF8M |
| 2 | BALL SEAT | R-PTFE |
| 3 | BALL | 316 |
| 4 | CAP | CF8M |
| 5 | SPING WASHER | 316 |
| 6 |
NUT |
304 |
| 7 | BOLT | 304 |
| 8 | STEM | 304 |
| 9 | THRUST WAHSER | PTFE |
| 10 | GALND NUT | 304 |
| 11 | HANDLE | 304 |
| 12 | SPING WASHER | 304 |
| 13 | NUT | 304 |
| 14 | LOCK DEVICE | 304 |
| 15 | HANDLE COVER | PLASTIC |
| size | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| D | 12.5 | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 94 |
| L | 72 | 72 | 72 | 80 | 85 | 105 | 113 | 132 | 170 | 186 | 220 |
| H | 48 | 48 | 50 | 52 | 65 | 70 | 85 | 93 | 116 | 125 | 180 |
| W | 105 | 105 | 105 | 126 | 144 | 144 | 189 | 189 | 224 | 224 | 251 |
 |
|
