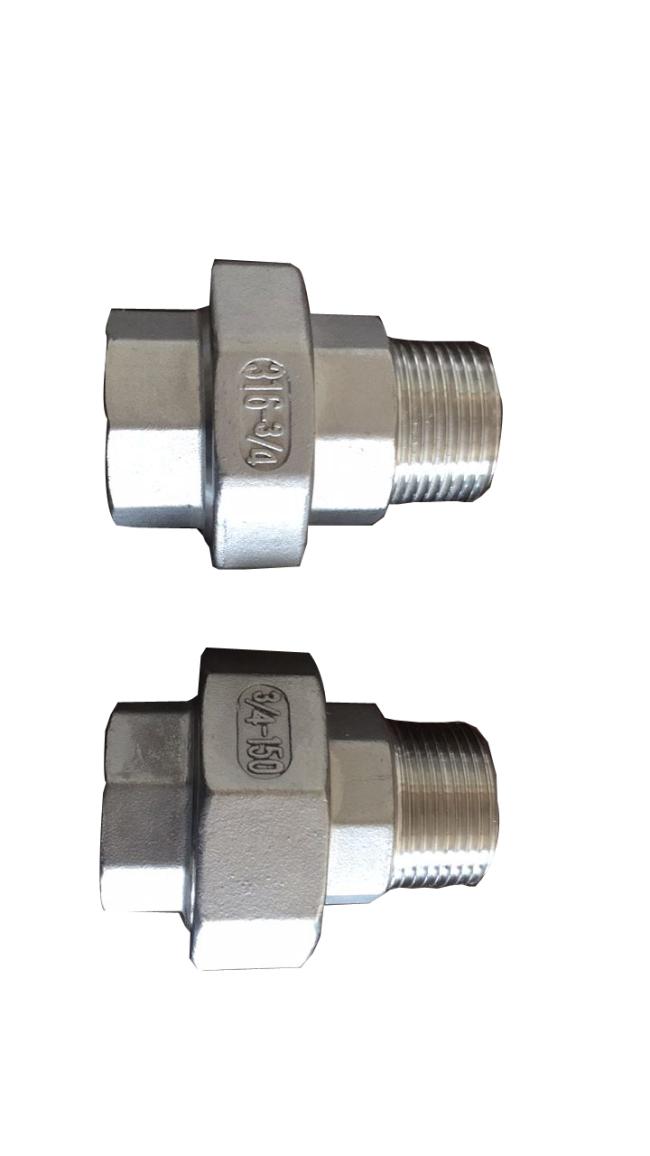

Male Female Union Stainless Steel Pipe Fitting CF8M And CF8 BSPT NPT Thread
1/2" To 4" Stainless Steel Pipe Fitting Male Female Unions CF8M And CF8 BSPT NPT Thread
1. Description

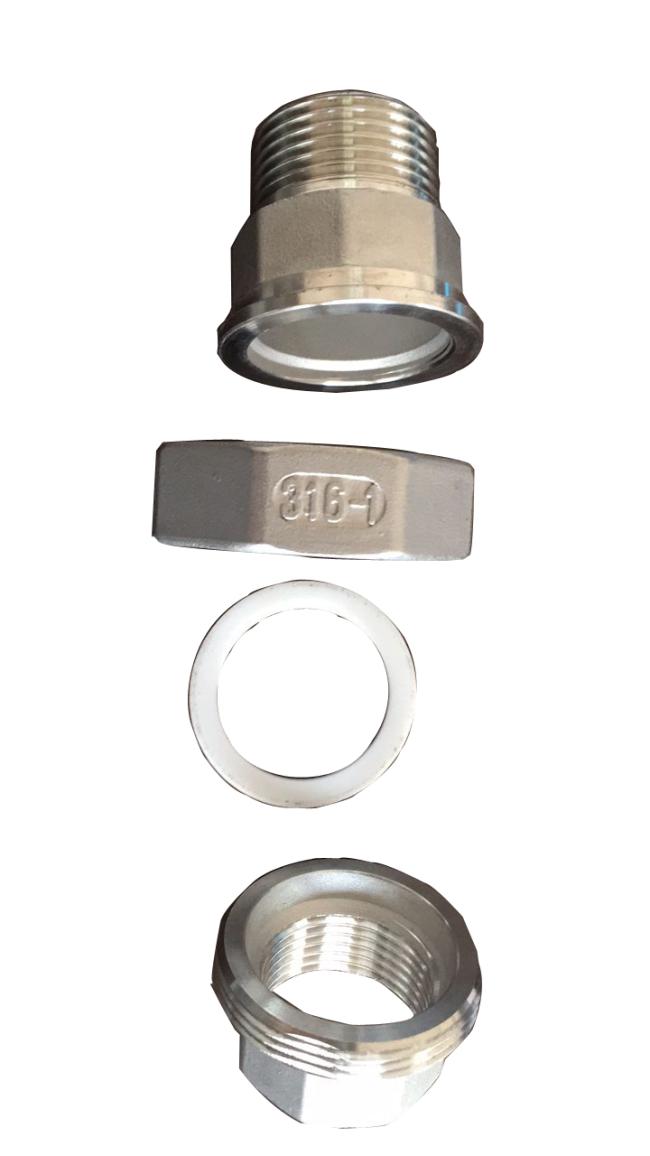

With the joining of the female and male ends, the nuts are used to provide the necessary pressure to seal the joint. When severe pulling stress is applied onto the pipe union from the outside, the locking screw breaks and removes the two parts of the union,
which in turn separates together with the pipes to which they are attached. Under normal conditions elastically stressed sealing objects ensure maintenance of watertightness between the union parts.
2. Application
The parts of the pipe union are normally locked together by at least one radial screw or nut with sized cross section.
They made separates together with the pipes and turn together.
3. Specifications
| SIZE | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| A | 13 | 16.5 | 20 | 24.5 | 30 | 37 | 46.5 | 53 | 65 | 82 | 95.5 | 121.5 |
| B | 26 | 29 | 34 | 37 | 44 | 52.5 | 63 | 70 | 84 | 101.5 | 118 | 148.5 |
| L1 | 30 | 33.5 | 36.5 | 39.5 | 42.5 | 50 | 54 | 58 | 65 | 75 | 83 | 110 |
| L2 | 8 | 10.5 | 11 | 14.5 | 15.5 | 18 | 20.5 | 20.5 | 25 | 27 | 30 | 36 |
| M | 13 | 13.5 | 15 | 16 | 17 | 20 | 22 | 24 | 27 | 29.5 | 31 | 34 |
4. Competitive Advantage
Easy union and good fittings.
