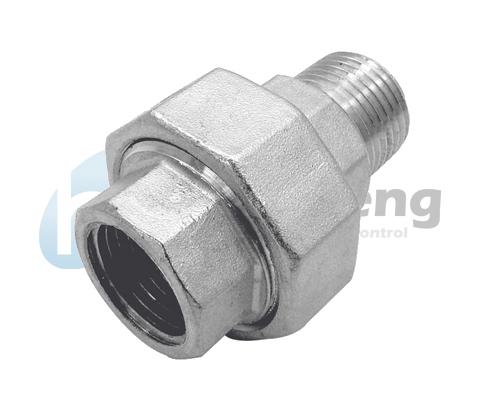

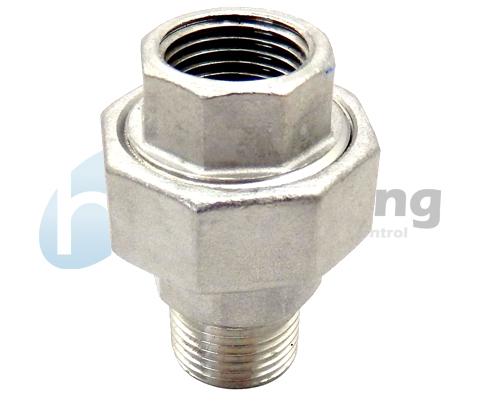

1-1/2" inch 316 stainless steel MF npt, bsp, bspt threaded union with astm, jis, ansi standard
Price:
USD 4.04- 5.16 dollars
MOQ:
10
Delivery Time:
40 days
Product Description
1-1/2" inch 316 stainless steel MF npt, bsp, bspt threaded union with astm, jis, ansi standard
MM threaded stainless steel unions are mainly made from 304,316 stainless steel.
Normal working pressure is 2 Mpa.
The thread type can be: NPT, BSP, BSPT etc.
Our main sizes are from 1" to 8".

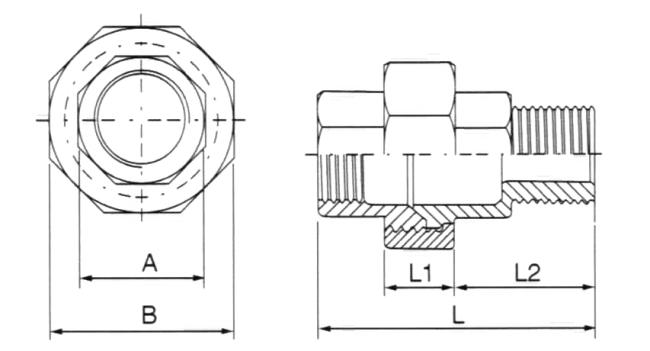

Dimensions:
| SIZE | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| A | 18.0 | 18.0 | 22.0 | 26.0 | 32.0 | 40.0 | 49.0 | 56.0 | 68.0 | 85.0 | 98.0 | 125.0 |
| B | 29.0 | 29.0 | 34.0 | 39.0 | 47.0 | 58.0 | 67.0 | 76.0 | 90.0 | 108.5 | 123.0 | 152.0 |
| L | 42.5 | 42.5 | 45.5 | 53.5 | 56.5 | 66.5 | 74.0 | 78.0 | 83.0 | 92.0 | 102.0 | 114.0 |
| L1 | 13.5 | 13.5 | 14.5 | 15.5 | 16.5 | 18.5 | 21.0 | 23.0 | 25.0 | 27.0 | 29.0 | 32.0 |
| L2 | 19.0 | 19.0 | 21.0 | 26.0 | 27.0 | 33.0 | 36.0 | 37.0 | 39.0 | 43.0 | 48.0 | 63.0 |
There are three types according to the structures as follows:
Notes:
The first two types of connnection are without the plastic washer, it can bear higher temperature than
the third type of connection. Because there is a plastic washer in the flat uions. Pictures for comparision
are as follows.
 |
|
The difference between the bsp, bspt and npt thread type are as follows.
 |
 |
