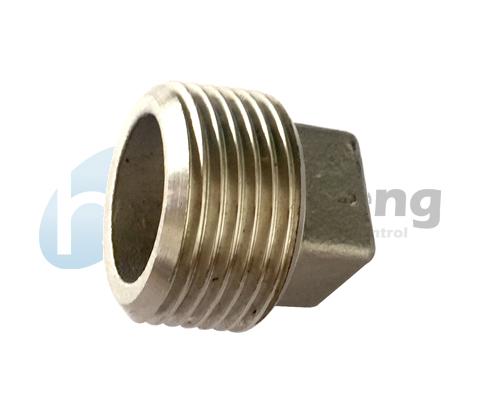

1/2" Inch 304 Stainless Steel Square Plug 2 Mpa Bspt Threaded
Price:
USD 0.36-0.41 dollars
MOQ:
10
Delivery Time:
40 days
Product Description
1/2" Inch 304 Stainless Steel Square Plug 2 Mpa Bspt Threaded
Material: 304, 316 or customized.
Thread: BSP, BSPT or NPT.
| SIZE | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| L1 | 10.0 | 12.0 | 14.0 | 15.0 | 18.0 | 21.0 | 24.0 | 25.0 | 29.0 | 31.0 | 34.0 | 40.0 |
| L2 | 6.0 | 6.0 | 6.0 | 7.0 | 9.0 | 11.0 | 12.0 | 12.0 | 14.0 | 15.0 | 16.0 | 22.0 |
| L | 16.0 | 18.0 | 20.0 | 22.0 | 27.0 | 32.0 | 36.0 | 37.0 | 43.0 | 46.0 | 50.0 | 62.0 |
| S | 7.0 | 9.0 | 10.0 | 11.0 | 16.0 | 19.0 | 22.0 | 22.0 | 27.0 | 32.0 | 36.0 | 58.0 |
 |
|
The difference between the bsp, bspt and npt thread type are as follows.
 |
 |
| Product Name | Casting Square Head Plug |
| Material | ASTM A105, ASTM A182 F304/F304L/F304H/F316/F316L/F317/F321, etc. |
| Standard | ASME,ANSI,MSS,DIN,JIS,JIB,JPI,BS,ISO etc. |
| Size | 1/8" ~ 4" |
| Connection | NPT |
| Application | Petroleum, gas, chemical, power,shipbuilding, metallurgy, construction, etc. |
| Packing | Plywood Pallets/ Wooden Case Or As Per Your Specification. |
| Rating | 3000# 6000# 9000# |
| Design | Customers’ drawings or designs are available. |
| Certificate | TUV, API, CRN, BV, ABS, PED, DNV, ISO9001 |
| Delivery time | Normal delivery time is from 30 to 45 days after receiving the deposit. |
