Stainless Steel DN20 Full Bore Flanged Ball Valve PN16 40 ANSI 150LB
Price:
Negotiable
MOQ:
5 PC
Delivery Time:
Negotiable
Product Description
Stainless Steel DN20 Full Bore Flanged Ball Valve PN16 40 ANSI 150LB
1. Description
We provide a variety of high quality valves including 1 piece, 2 piece, 3 piece, flanged, multiport, sanitary, along with in house actuation.Its totally encapsulated body seals resist the cold flow of PTFE and enable high performance over a wide temperature and pressure range.
For general chemical and industrial services
Related pneumatic and electric unit can be installed
Body Materia: CF8, CF8M, CF3M
STANDARD
Design: ANSI B 16.34
Testing: API598

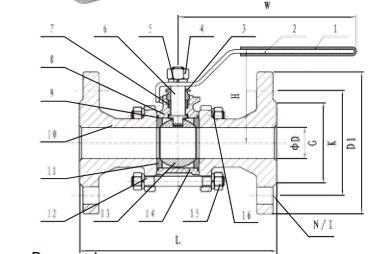

2. Specification
| ITEM | DESIGNATION | MATERIAL |
| 1 | HANDLE SLEEVE | PLASTIC |
| 2 | HANDLE | 304 |
| 3 | GLAND NUT | 304 |
| 4 | STEM NUT | 304 |
| 5 | THRUST WASHER | 304 |
| 6 | STEM | 304/316 |
| 7 | STEM PACKING | PTFE |
| 8 | BODY | PTFE |
| 9 | BODY SEAL | PTFE |
| 10 | CAP | CF8CF8M |
| 11 | BALL SEAT | R-PTFE |
| 12 | BOLT | 304 |
| 13 | BALL | CF8M |
| 14 | BODY | CF8/CF8M |
| 15 | NUT | 304 |
| 16 | THRUST WASHER | 304 |

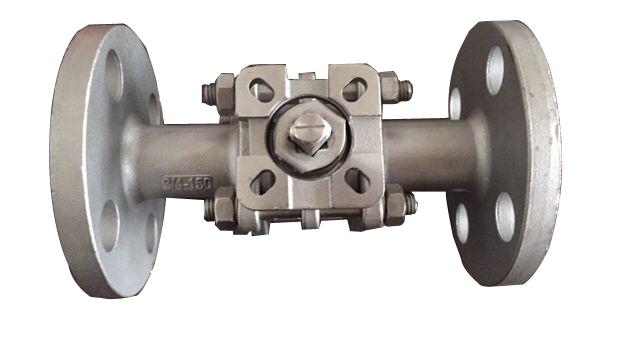

3. Product Picture
