DN100 Metal Ball Valve , CF8M Female And female threaded ball valve
DN100 Metal Ball Valve , CF8M Female And female threaded ball valve
1. Description:
We offer 1 PC valves in numerous configurations for heavy industrial and high-pressure hydraulic applications in petroleum, gas production,
and crude oil, hydraulic and petrochemical industries. Strong construction of our products allows them to have resistance against corrosion and long
functional life in order to ensure excellent flow control.We committed to delivering the best 1 PC ball valves and contract manufacturing services
to customers around the world. For custom-designed products, it offers a complete manufacturing service and comprehensive environment test facilities.
Design: ANSI B 16.34
Testing: API598
2. Applications:
For general chemical and industrial services
Working Pressure: 6.3 MPa, 1000PSI
Applicable Medium: Water, Oil, Gas
Body Material: CF8, CF8M, CF3M
Options: Locking device

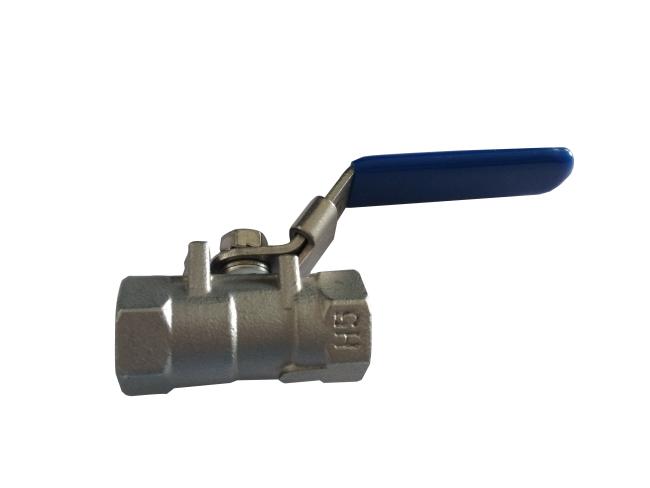

3. Product Show:

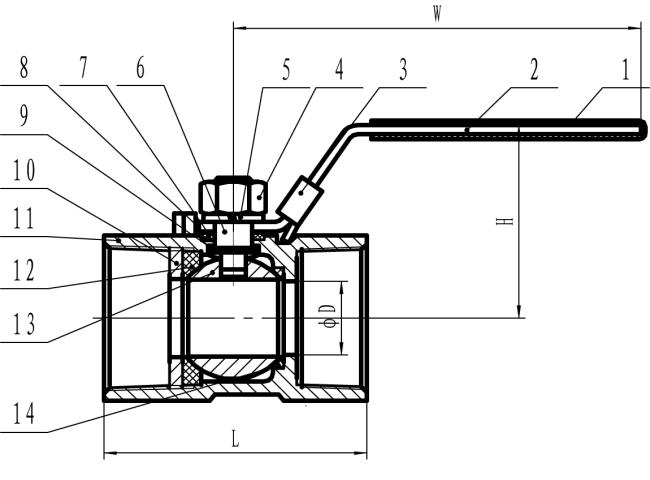

| ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" |
| D | 5 | 7 | 9.2 | 12.5 | 15 | 20 | 25 | 32 |
38 |
50 |
| L | 39 | 44 | 57 | 59 | 71 | 78 | 83 | 100 | 128 | 153 |
| H | 33 | 35 | 40 | 44 | 51 | 57 | 64 | 70 | 70 | 77 |
| W | 68.5 | 90 | 98 | 98 | 111 | 111 | 139 | 139 | 189 | 189 |
