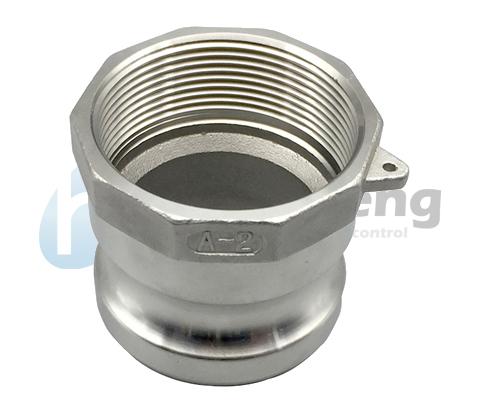

1" Inch 2 Mpa Stainless Steel Quick Connect 316 Npt Bsp Bspt Thread
Price:
USD 1.64-1.86 dollars
MOQ:
10
Delivery Time:
40 days
Product Description
1" Inch 2 Mpa Stainless Steel Quick Connect 316 Npt Bsp Bspt Thread
Material: 304, 316 or customized.
Connection type: coupling and thread

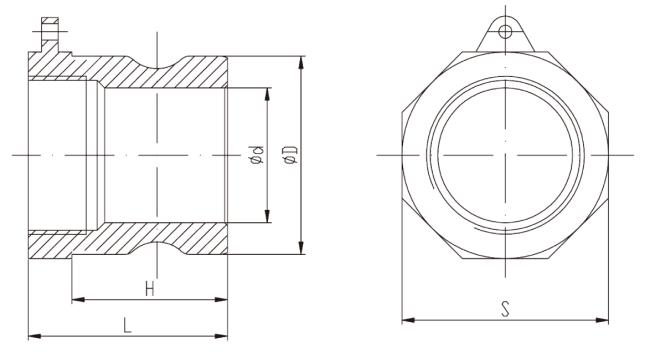

| Seiz | L | H | D | d | S |
| 1/2" | 37 | 30 | 32 | 18.5 | 33 |
| 3/4" | 37 | 30 | 32 | 23 | 33 |
| 1" | 44 | 32 | 36.5 | 26 | 38 |
| 1-1//4" | 48 | 37 | 45.5 | 31 | 46.5 |
| 1-1/2" | 52.5 | 40 | 53.3 | 40 | 55 |
| 2" | 59 | 46 | 63 | 48 | 65 |
| 2-1/2" | 72.5 | 56 | 75.5 | 60 | 82 |
| 3" | 67 | 50 | 91.5 | 76 | 97 |
| 4" | 67 | 50 | 119.5 | 103 | 122 |
 |
|
| Size | 1/2" to 8" |
| Type | A/B/C/D/E/F/DC/DP |
| Body Material | Stainless Steel(SS316 or SS304),Aluminium,Brass |
| Handle (Arm) | Stainless Steel,Aluminum,Brass |
| Gasket | NBR, EPDM, Vition,PTFE Envelop Gasket |
| Pressure | 75PSI to 250PSI |
| Thread | NPT/BSP(we usually make the female thread parallel BSPP,male thread tapered BSPT) |
|
Technics
|
Die-Casting and Gravity Casting / Sand Casting and Forging / Precison Casting |
| Application | Pipe Connection for water, petroleum, chemical, liquid etc |
| Standard | A-A-59326 (superseding MIL-C-27487) or DIN 2828. |
