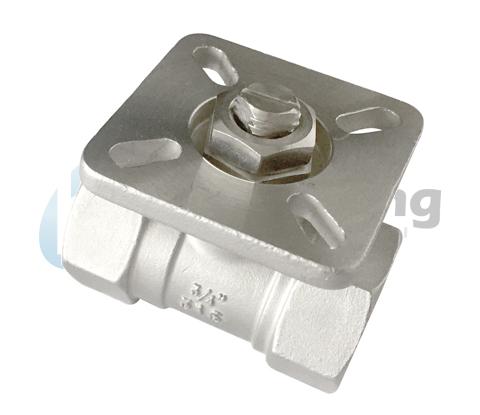

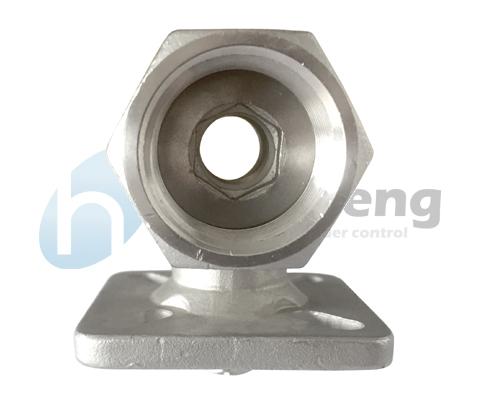

1/4 Inch 304 Stainless Steel Actuator Ball Valve Npt / Bsp Threaded
1/4 Inch 304 Stainless Steel Actuator Ball Valve Npt / Bsp Threaded
1, 1 pc ball valve are mainly made by 304, 316 stainless steel. Other stainless materials are also available.
2, The working pressure is around 1000 WOG, about 6.9 MPA.
3, Working temperature is from -4F-392F.
4, Connection type: Butt welding, threaded, Socket welded.
5, Certificates: ISO 9001, CE.
6, Normal sizes: From 1/4" to 4".
7, Thread type: NPT, BSP, BSPT
8, Bore type: Reduced.
· Temperature Range:-20℃~232℃
· Suitable Medium:Water,Oil,Gas and some Corrosive Liquids
· Blow-out Proof Stem/Reduced Port
· Investment Casting Body
· 1000PSI(PN64)W.O.G 150lb PN16
· Delivery Time:Usually Within 30days after received T/T deposit Payment
· Payment:Usually T/T, but L/C also acceptable.
· Certification: ISO9001-2008/KC/SON/CE/TS

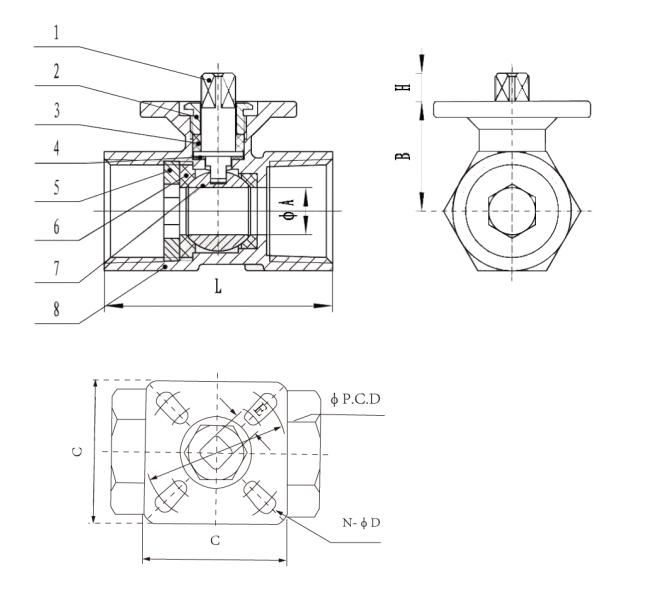

Material and specification
| Item | ITEM | Material |
| 1 | STEM | 304 |
| 2 | GLAND | 304 |
| 3 | STEM PACKING | PTFE |
| 4 | THRUST WASHER | PTFE |
| 5 | CAP | CF8M |
| 6 |
BALL SEAT |
RPTFE |
| 7 | BALL | CF8M |
| 8 | BODY | CF8M |
| SIZE | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| L | 45 | 50 | 60 | 73 | 78 | 90 | 100 |
| A | 7 | 9.2 | 12.5 | 15 | 20 | 25 | 32 |
| B | 23 | 25 | 32 | 35 | 38 | 42 | 50 |
| C | 36 | 50 | 50 | 50 | 50 | 70 | 70 |
| H | 9 | 9 | 9 | 9 | 9 | 11 | 11 |
| ΦPCD | F03 | F03/F05 | F03/F05 | F03/F05 | F03/F05 | F05 | F05 |
| N-ΦD | 4-Φ5.5 | 8-5.Φ5-6.5 | 8-Φ5.5-6.5 | 8-Φ5.5-6.5 | 8-Φ5.5-6.5 | 4-Φ6.5 | 4-Φ6.5 |
| E | 9 | 9 | 9 | 9 | 9 | 11 | 11 |
 |
|
